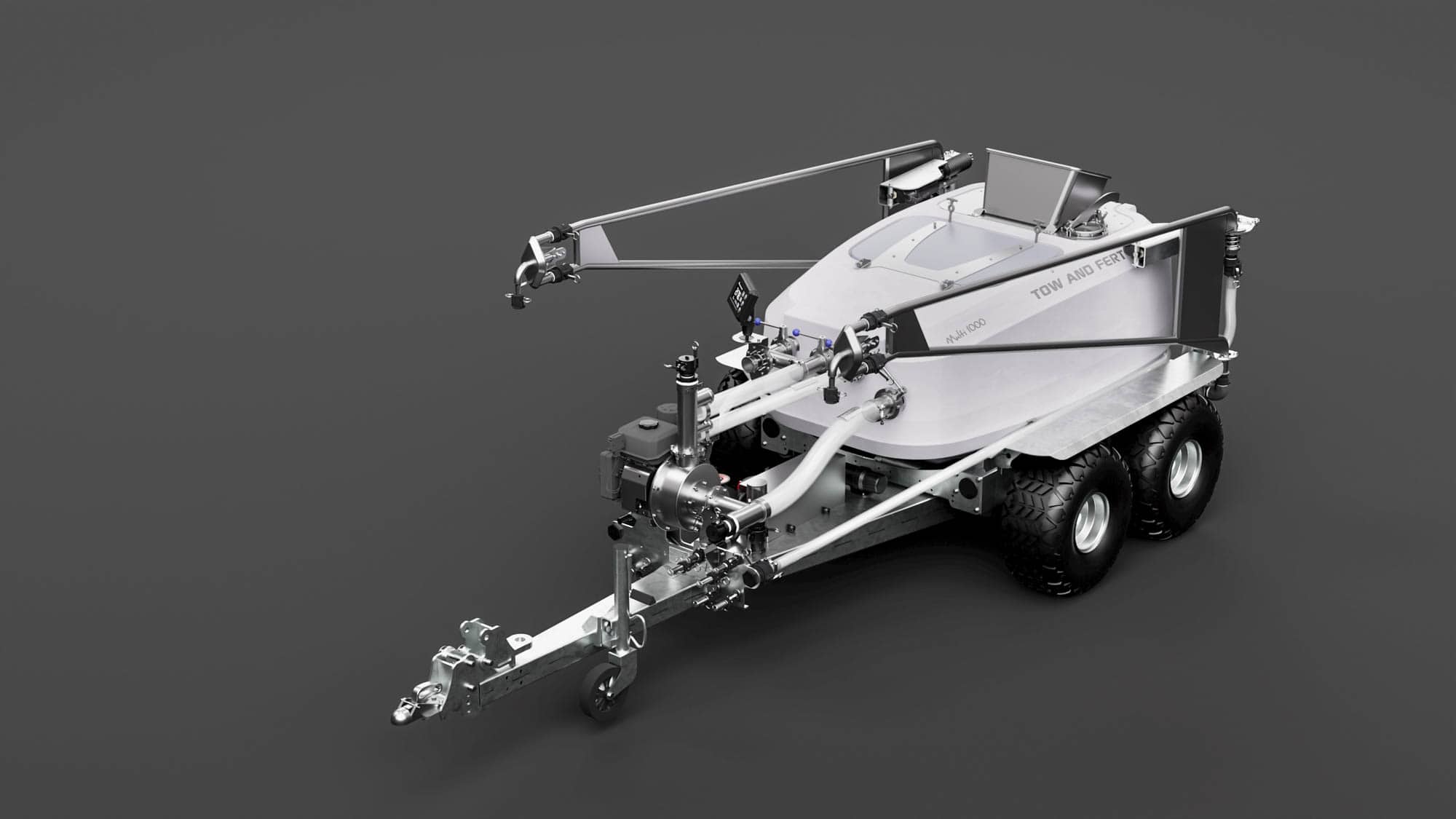

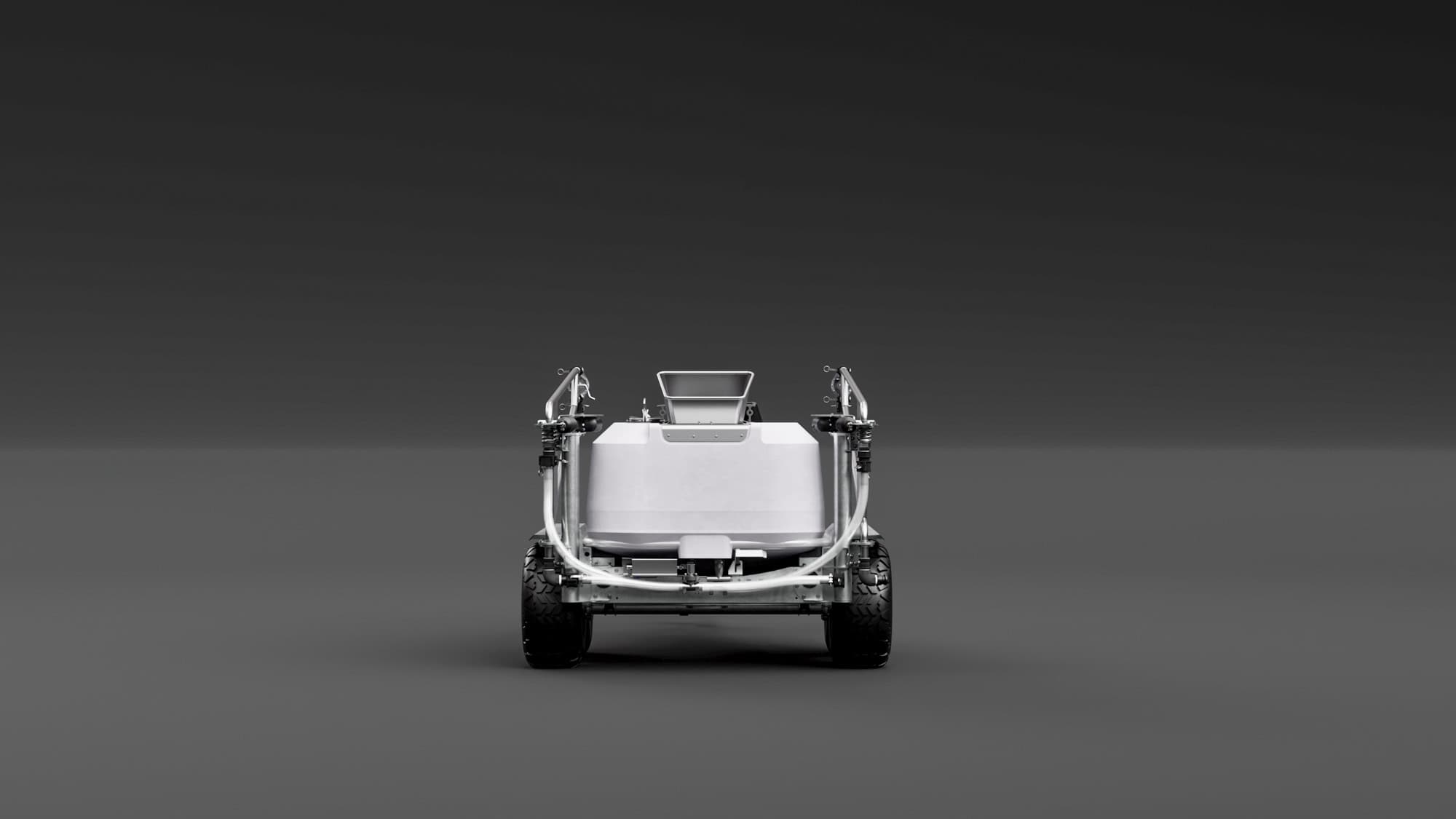

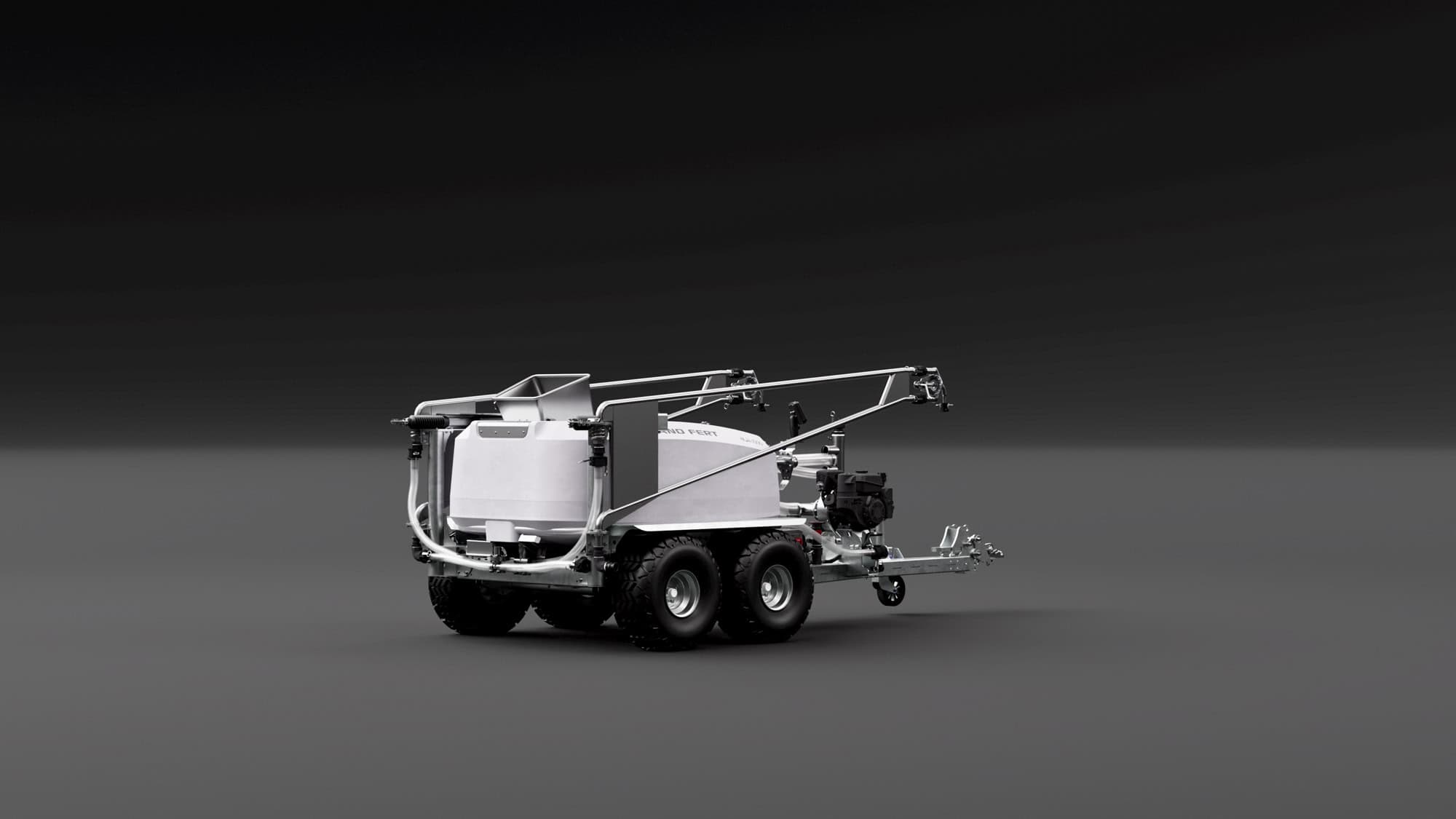

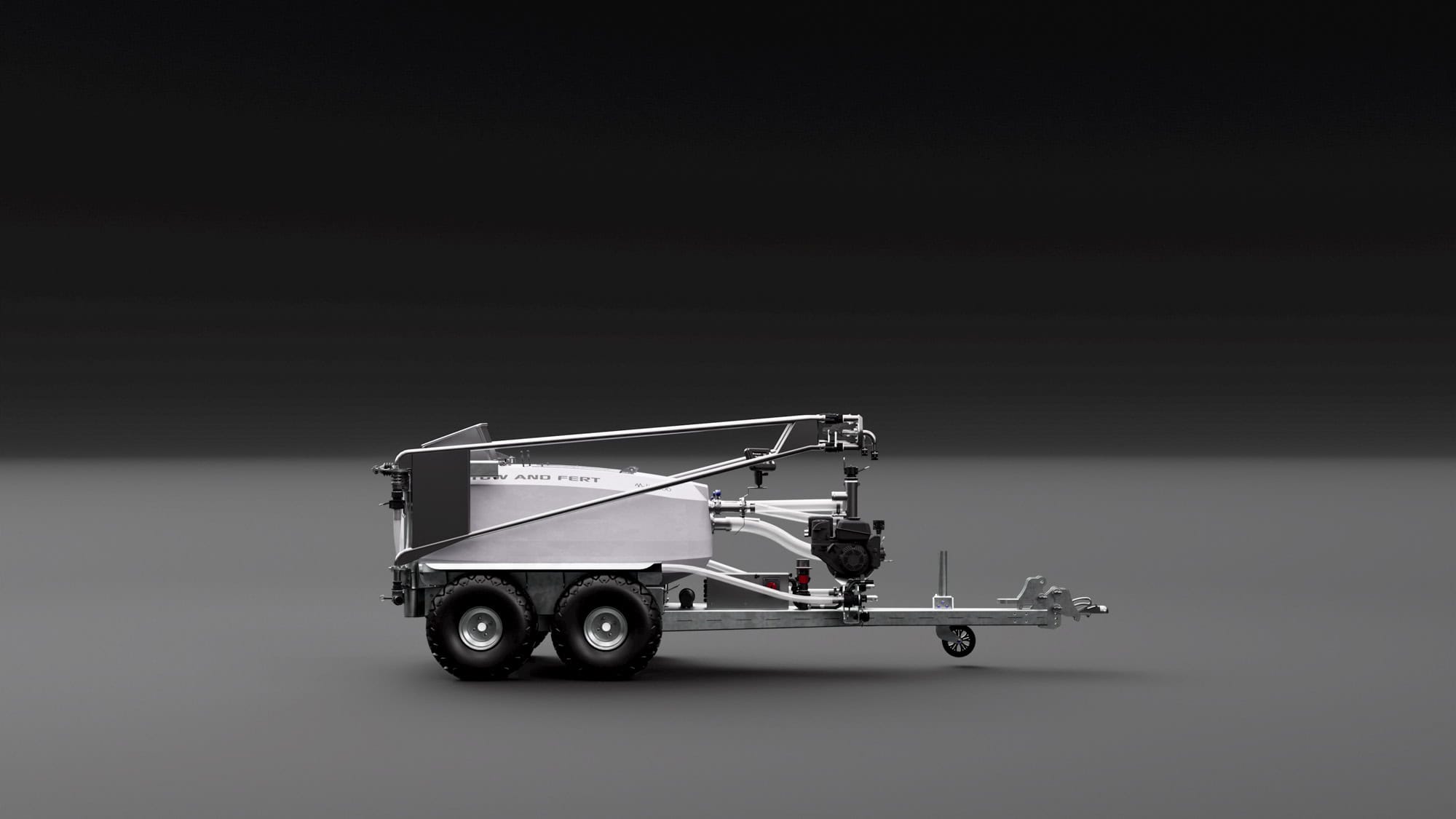

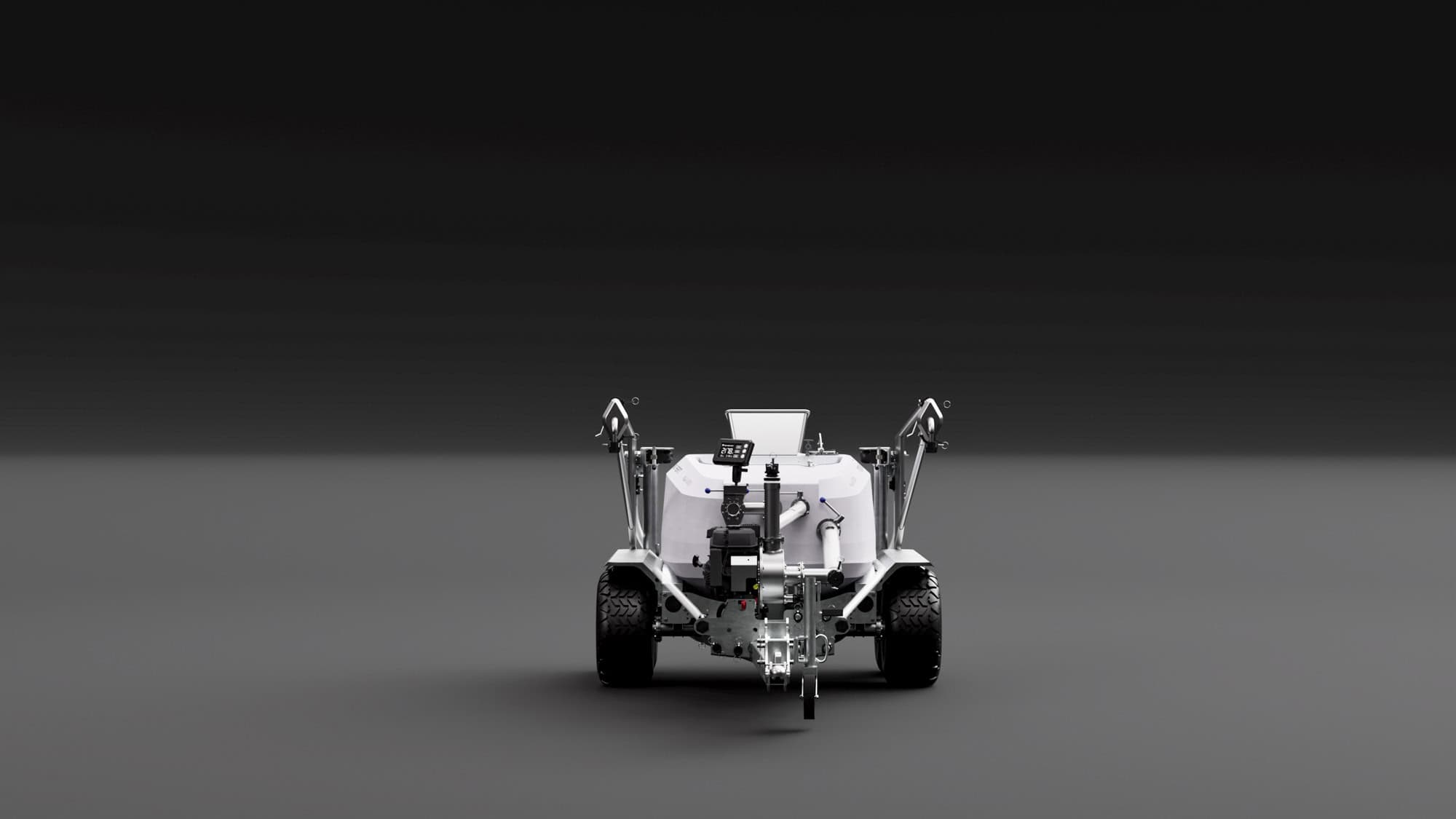

MULTI 1000

The Tow and Fert Multi 1000 is a trailed unit that is suitable to be towed by either a ute or a tractor.

On the West Coast of New Zealand it is wet. For Ian Maxwell the Tow and Fert Multi 1000 has helped with his Animal health.

Reliability and Versatility.

A flexible solution for farms up to 100 hectares. The Tow and Fert Multi 1000.

The Tow and Fert Multi 1000 is a completely stand alone machine and is available in two options.

Option 1) A petrol powered machine perfect for towing behind a Ute or tractor.

Option 2) A hydraulic powered unit for attaching too and driven by your tractor.

With a low centre of gravity, the Multi 1000 is a very versatile machine on all types of farms.

With a 1000 litre capacity this machine can easily dissolve urea in cold water, or hold 1 tonne of dry fine particle product in suspension. The Multi 1000 features our patented re-circulation boom design that delivers up to a 20 metre spread through just 2 large nozzles. This means product cannot settle out in any dead areas found on typical boom sprayers.

Fitted with a 100% Stainless Steel trash pump and a silicon carbide mechanical seal – specifically designed for this application, the Tow and Fert is built to last.
All fittings are removable without a toolbox and can be changed in the field.

Depending on application rate, the Multi 1000 has the capacity to cover approx. 8 hectares in one load.

tank volume 1000 litres (255 gallons)
spray width Up to 20 metres (65 feet)
application rate Variable from 50 – 500 litres/hectare
attachment style Trailed
attachment vehicle Tractor or 4wd Ute
agitation powered by On board Petrol Engine or by Tractor hydraulics
area per load approx. 8-12 hectares (15 – 30 acres)
pump model Metalform Stainless 3” Centrifugal Trash Pump
pump performance 1200 litres per minute at 0 metres lift. Max lift = 4 metres
pump powered by On board Petrol Engine or Tractor
dry weight 650kg
full weight 2,200kg
size 4.30m (L) x 1.80m (W) x 1.70m (H)
tow hitch 1 7/8” or 50mm Coupling, Tractor Tongue
Optional Extras Dual Actuation, Horticulture Booms, Single Nozzell
