A flexible solution for farms up to 100 hectares. The Tow and Fert Multi 1000.

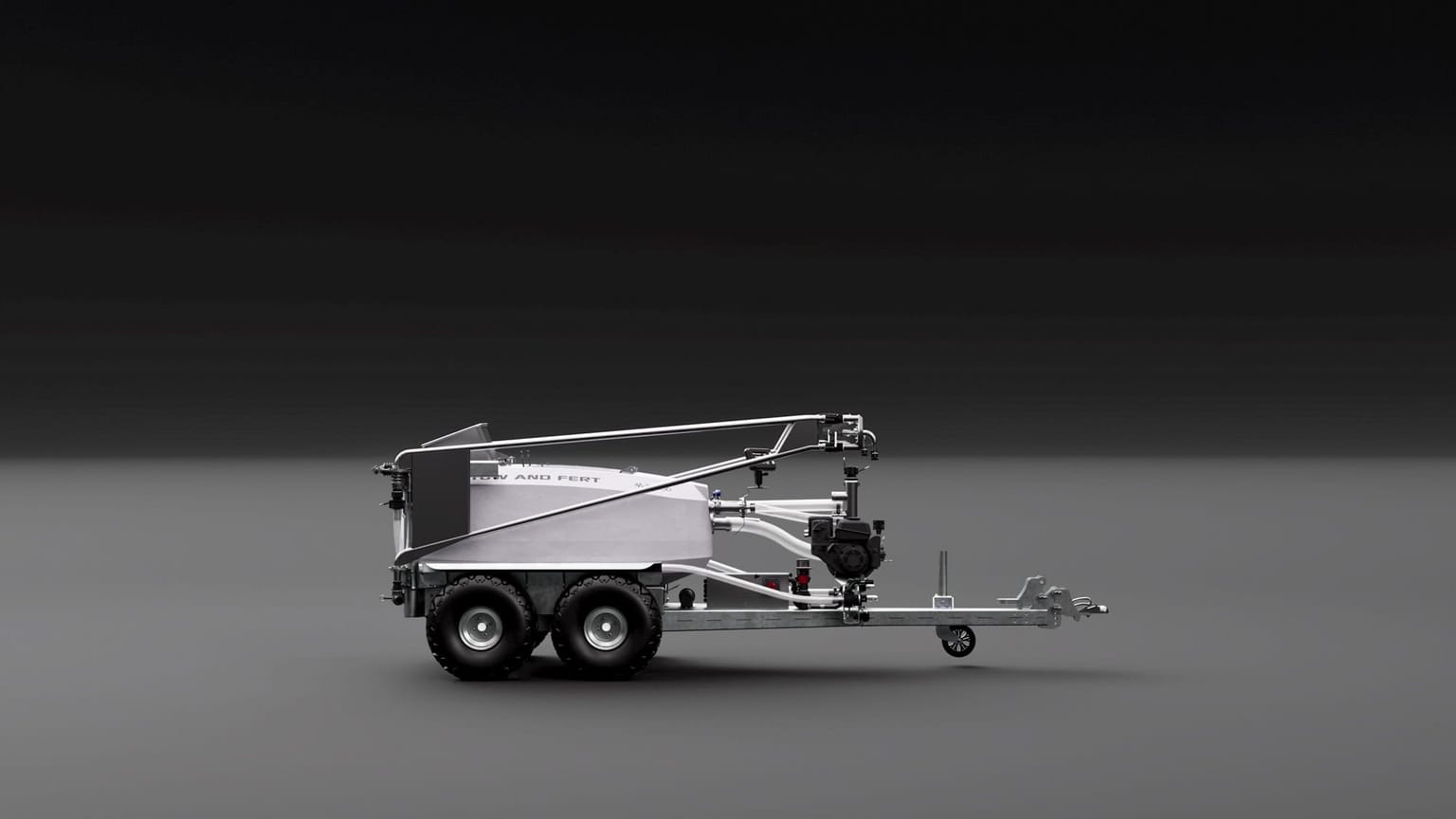

Tow and Fert Multi 1000

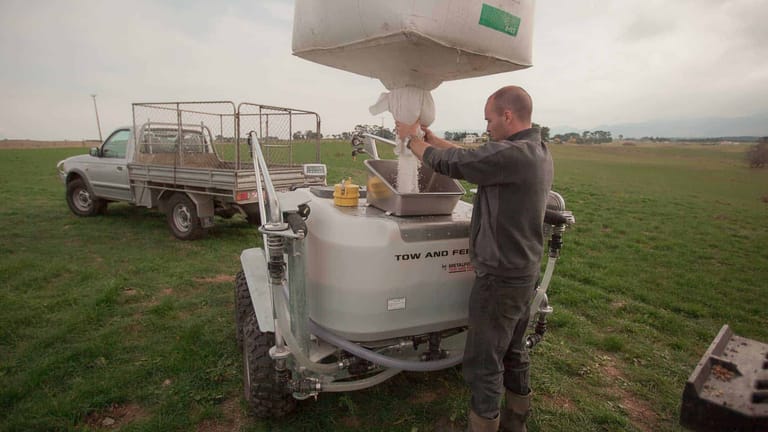

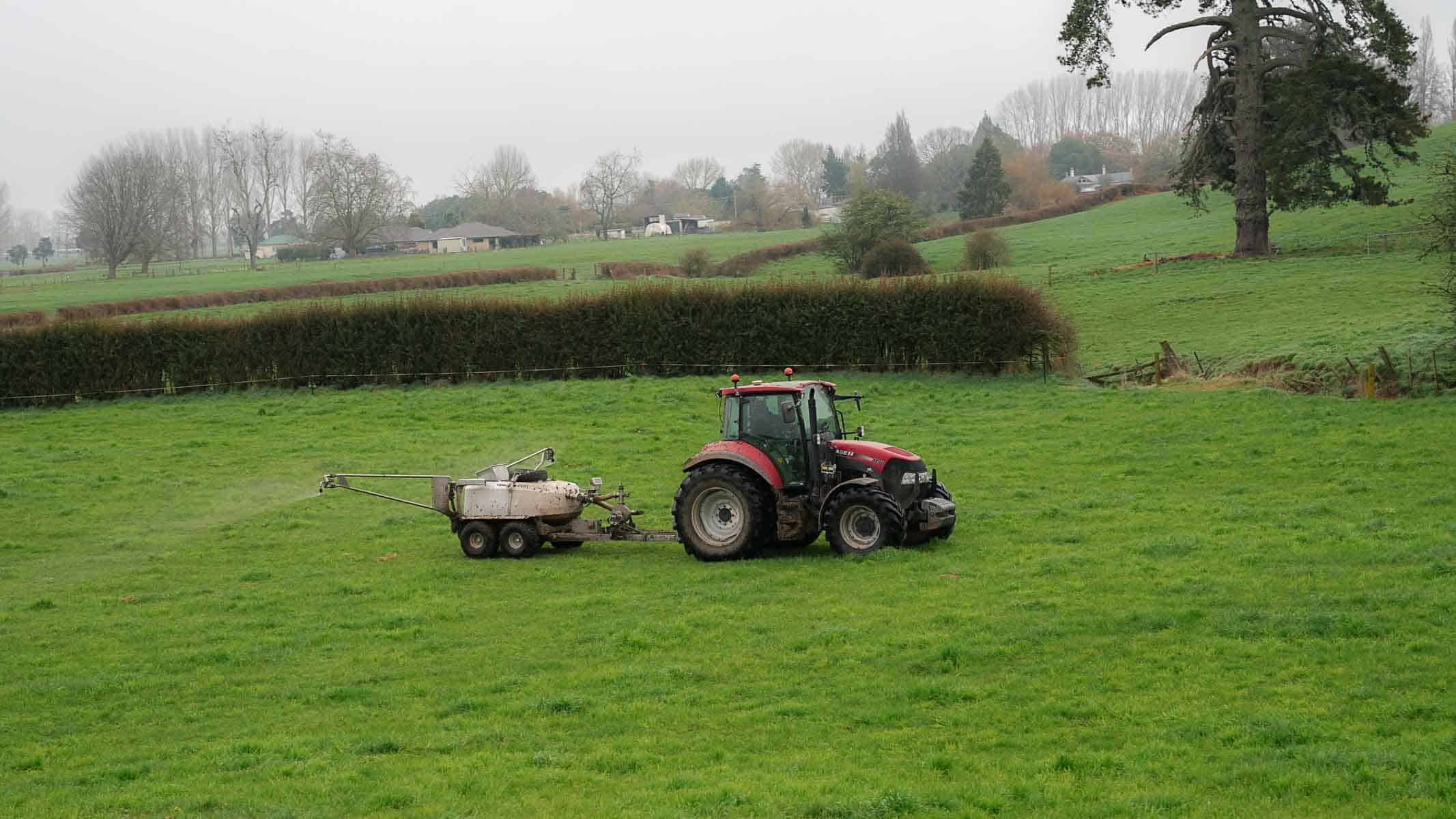

The Tow and Fert Multi 1000 is a completely stand alone machine and is available in two options – a petrol powered machine for towing behind a Ute or tractor, or a hydraulic powered unit for a fully dedicated tractor system. The Multi 1000 can easily dissolve urea in cold water, or hold 1 tonne of dry fine particle product in suspension. It features our patented re-circulation boom design that delivers up to an 18 metre spread through just 2 large nozzles and stops product from settling in any dead spots on the boom. Depending on application rate, the Multi 1000 has the capacity to cover approx. 8 hectares in one load.
Tank size
1000 L
Spray width
18 m
Area per load
8 ha
Application rate
50 – 500 l/ha
Attachment style
Trailed
Attachment vehicle
Tractor or 4wd Ute

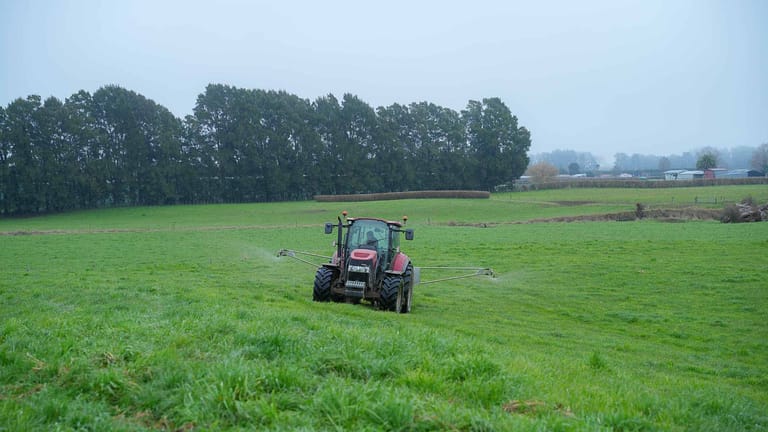

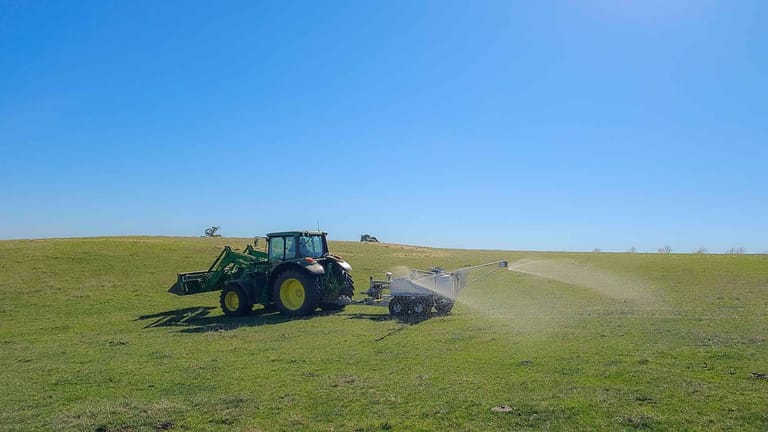

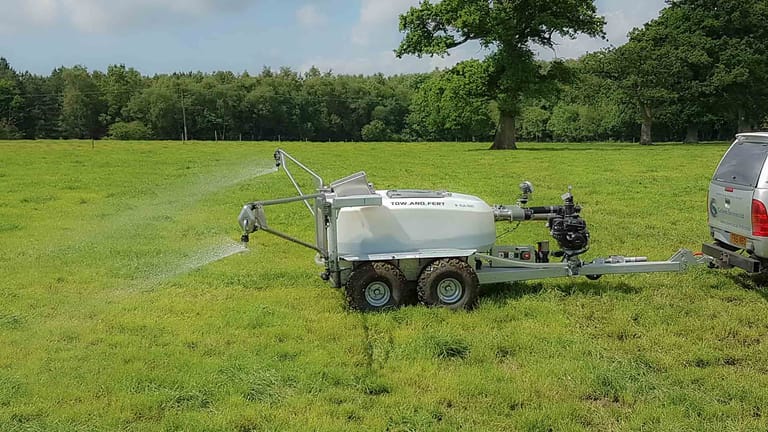

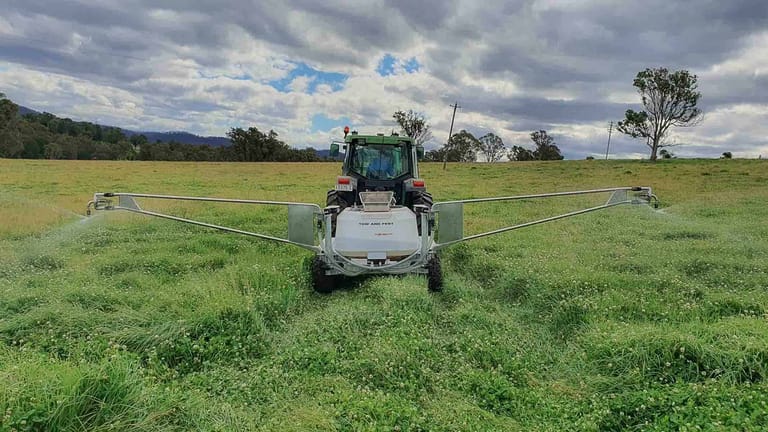

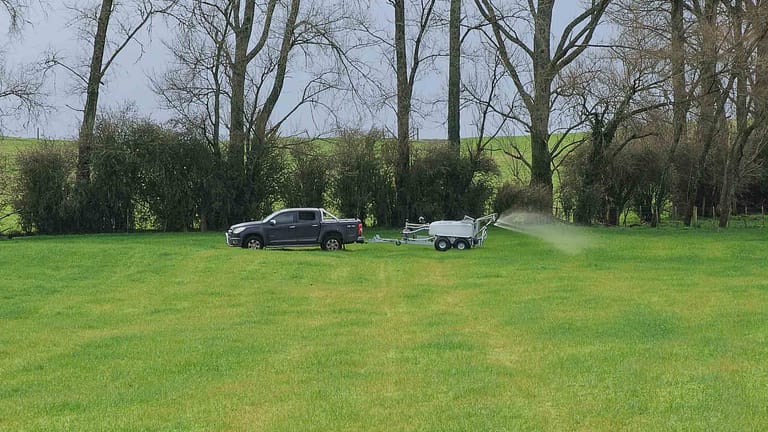

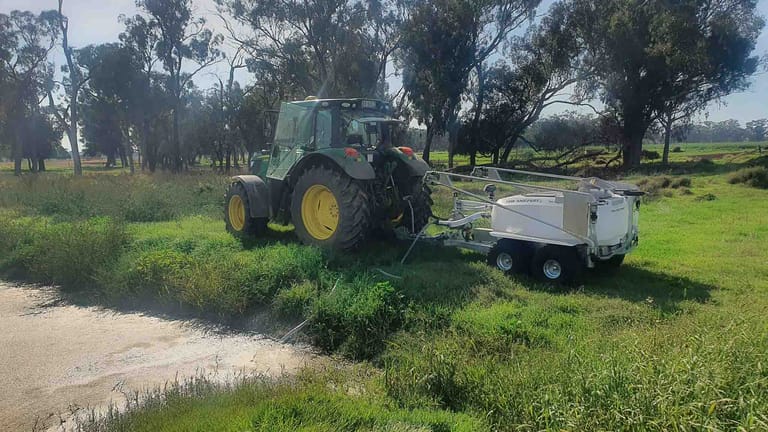

Gallery
Switch above to view Pasture setup.
Boom type
Tank size
1000 L
Spray width
18 m
Area per load
8 ha
Application rate
50 – 500 l/ha
Attachment style
Trailed
Attachment vehicle
Tractor or 4wd Ute
Agitation powered by
On board Petrol Engine OR Hydraulic Motor
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
On board Petrol Engine or Hydraulic Motor
Dry weight
720kg
Full weight
Up to 2,270kg
Size
4.30m (L) x 1.80m (W) x 1.70m (H)
Specifications
Tank size
1000 L
Spray width
18 m
Area per load
8 ha
Application rate
50 – 500 l/ha
Attachment style
Trailed
Attachment vehicle
Tractor or 4wd Ute
Agitation powered by
On board Petrol Engine OR Hydraulic Motor
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
On board Petrol Engine or Hydraulic Motor
Dry weight
720kg
Full weight
Up to 2,270kg
Size
4.30m (L) x 1.80m (W) x 1.70m (H)
Optional extras
Section Control
Hort/Tree Crop Kit

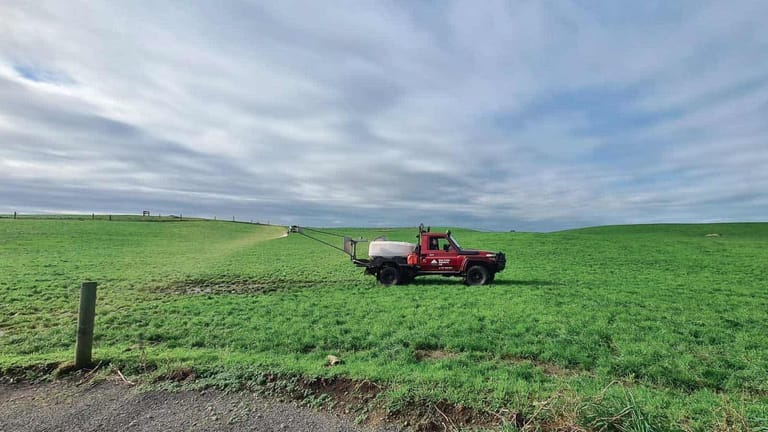

Ute Mount
Stationary Mixing Station
Compost Basket
BUILT TO OUTPERFORM
The most capable suspension sprayer, feature by feature
We built the Tow and Fert to do what others can't. Line them up against it and the gap speaks for itself.
| Feature | Tow and Fert | Other Sprayers |
|---|---|---|
| Even spread, under 15% COVEven application you can measure, test it on your own farm | Tow and FertYes | Other SprayersPartial |
| Dissolves 1 part urea to 2 parts water, fastHigh-concentration mixes without clogging or long load times | Tow and FertYes | Other SprayersNo |
| Suspends 2 parts lime flour to 1 part waterKeeps heavy fine particles in suspension, evenly, all the way to the nozzles | Tow and FertYes | Other SprayersNo |
| Boom recirculation on every nozzlePatented system, works even on single-nozzle machines - no blocking | Tow and FertYes | Other SprayersNo |
| Purpose-built Metalform 3 inch stainless pumpEngineered in-house after off-the-shelf pumps couldn't take the punishment | Tow and FertYes | Other SprayersNo |
| Runs at 22psi to protect biologicalsLow pressure keeps microbes and living inputs alive through application | Tow and FertYes | Other SprayersNo |
| Onboard weigh scalesKnow exactly what's in the tank, load accurately every time | Tow and FertYes | Other SprayersPartial |
| Companion Mix appMix rates, nozzle selection and ground speed worked out for you | Tow and FertYes | Other SprayersNo |
| 2,500+ strong farmer communityReal users sharing results, trials and advice, not just customers | Tow and FertYes | Other SprayersNo |
| Commercial-grade build, Over-engineered to outlastCommercial construction that keeps performing, day in day out | Tow and FertYes | Other SprayersNo |
| Travelling service & support - globallyOn-farm support and servicing, not a phone queue | Tow and FertYes | Other SprayersPartial |
| Pioneered and built in New ZealandDesigned and manufactured in Dannevirke, over 15 years in the paddock | Tow and FertYes | Other SprayersPartial |
Handover Video
Handover Video: The Multi 1000
This video will give you an overview of how the Tow and Fert Multi 1000 operates.
