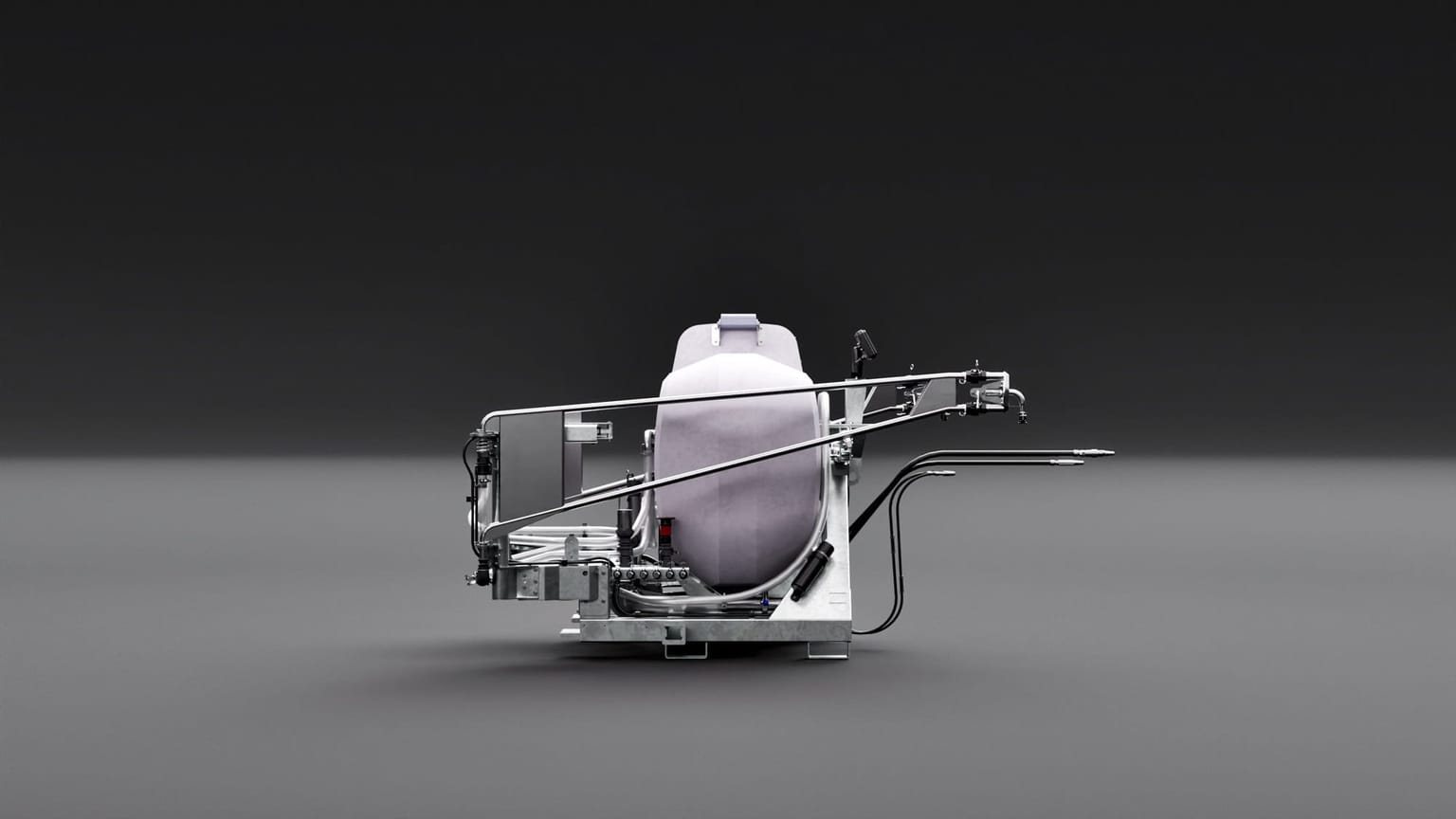

Tow and Fert Multi 1200

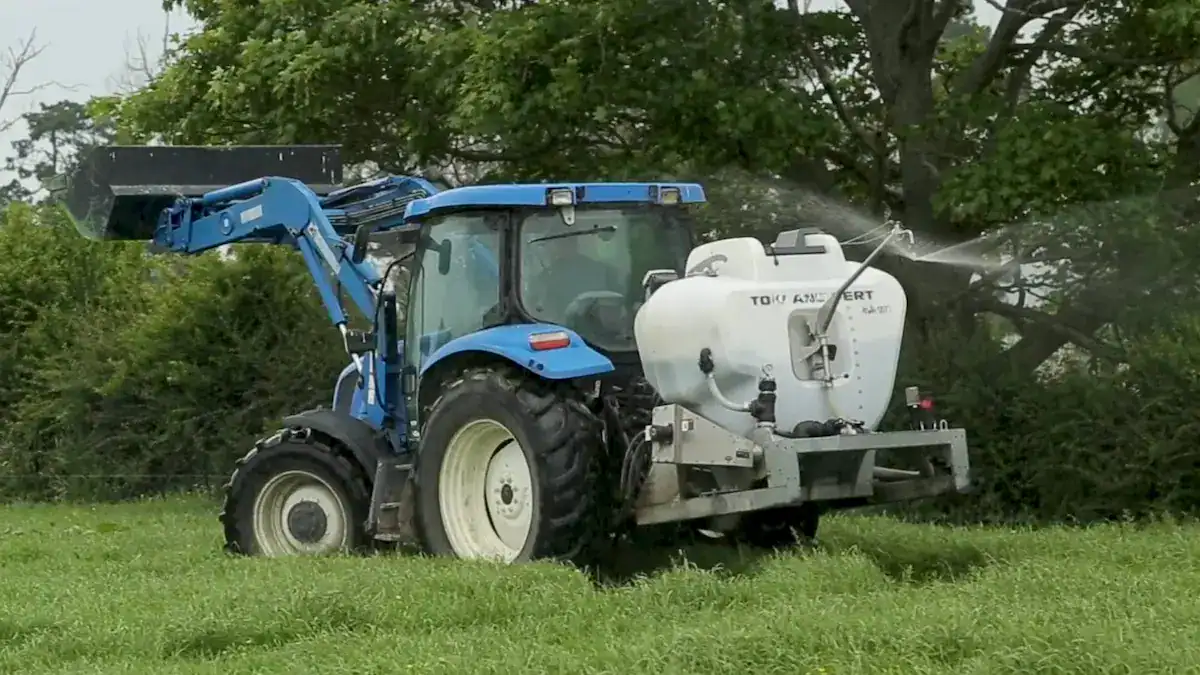

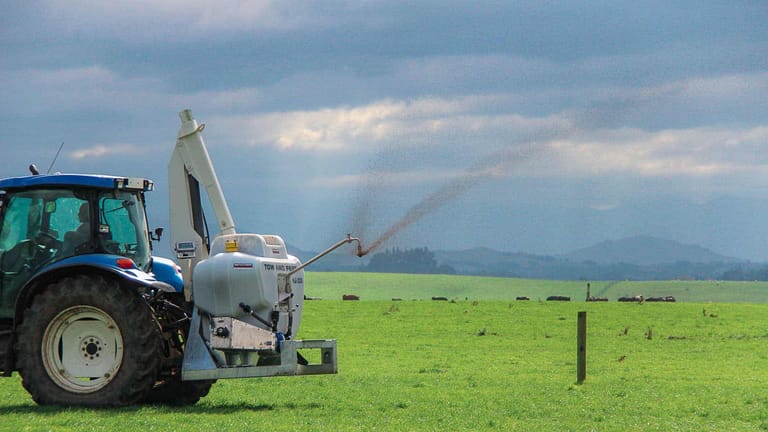

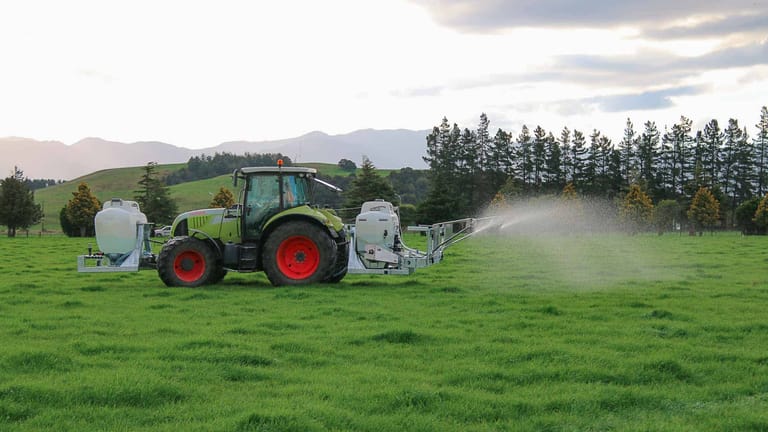

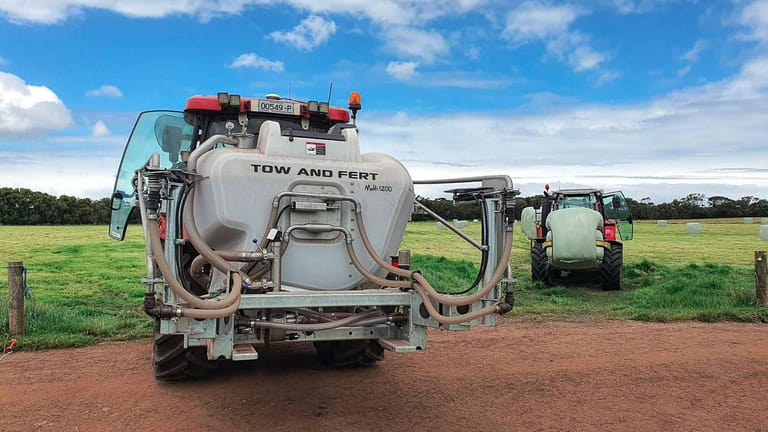

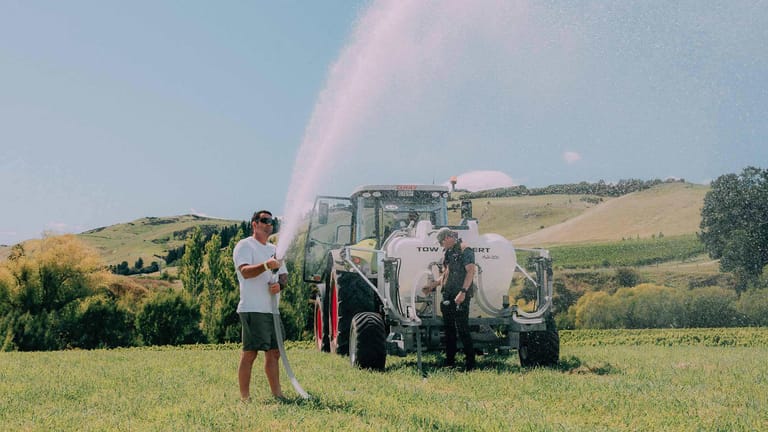

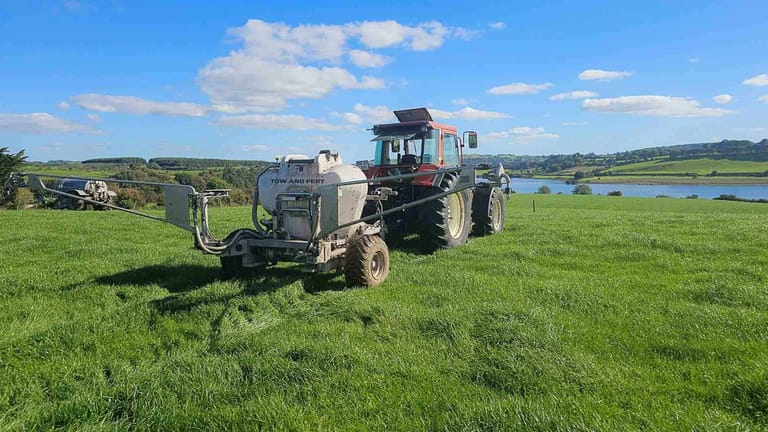

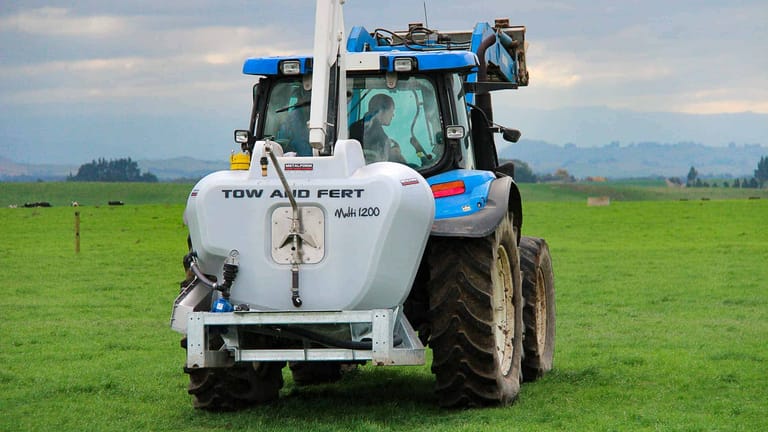

The Tow and Fert Multi 1200 attaches to the back of your tractor and has up to a 18 metre spread width. The three point linkage sprayer is ideal for farms where manoeuvrability and terrain is a factor compared to the longer trailed units. With the optional crane system, you can make this a 1 tractor solution for loading and operating. A minimum of 110hp tractor is required to handle the weight, but a larger tractor will be required on hillier terrain. The Multi 1200 can self-fill by sucking in liquid from your effluent pond or a fresh water source. With a 1200 litre capacity the Tow and Fert Multi 1200 can dissolve 1⁄2 tonne of urea in cold water, or hold 1.2 tonne of dry fine particle product in suspension. The Multi 1200 features dual booms, with a spray width of up to 18 metres, so you can cover 1 hectare in just 3 minutes. Depending on the application rate, the Multi 1200 has the capacity to cover approx. 10 hectares in one load. Using tractor hydraulics, the Multi 1200 is simple and hassle-free. Fitted with a 100% Stainless Steel trash pump and a silicon carbide mechanical seal – specifically designed for this application, the Tow and Fert is built to last. All fittings are removable without tools and can be changed in the field.

Tank size
1200 L
Spray width
18 m
Area per load
10 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
3 Point Linkage
Attachment vehicle
110hp tractor or greater
Gallery
Switch above to view Pasture setup.
Tank size
1200 L
Spray width
18 m
Area per load
10 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
3 Point Linkage
Attachment vehicle
110hp tractor or greater
Agitation powered by
3″ Trash Pump
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulic Motor – 33 litres/min
Dry weight
850kg
Full weight
up to 2,500kg (depending on mix)
Size
1.65m (L) x 2.00m (W) x 1.70m (H)
Specifications
Tank size
1200 L
Spray width
18 m
Area per load
10 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
3 Point Linkage
Attachment vehicle
110hp tractor or greater
Agitation powered by
3″ Trash Pump
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulic Motor – 33 litres/min
Dry weight
850kg
Full weight
up to 2,500kg (depending on mix)
Size
1.65m (L) x 2.00m (W) x 1.70m (H)
Optional extras
Wheel Kit
Hort/Tree Crop Kit
Stationary Mixing Station
Compost Basket
Description

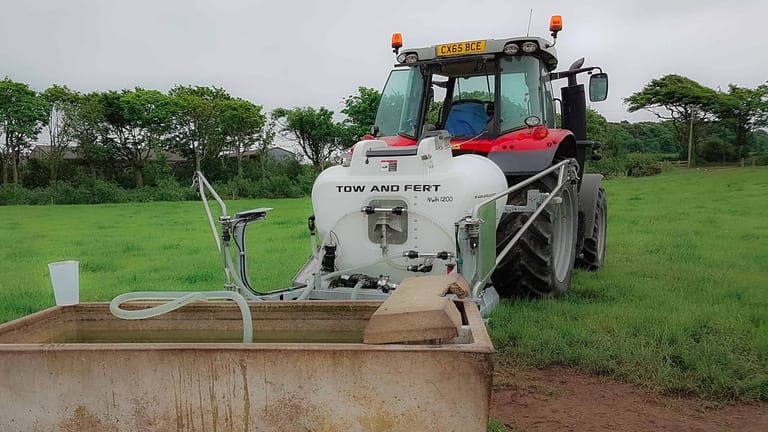

The Tow and Fert Multi 1200 attaches to the back of your tractor and has up to a 18 metre spread width. The three point linkage sprayer is ideal for farms where manoeuvrability and terrain is a factor compared to the longer trailed units. With the optional crane system, you can make this a 1 tractor solution for loading and operating. A minimum of 110hp tractor is required to handle the weight, but a larger tractor will be required on hillier terrain. The Multi 1200 can self-fill by sucking in liquid from your effluent pond or a fresh water source.

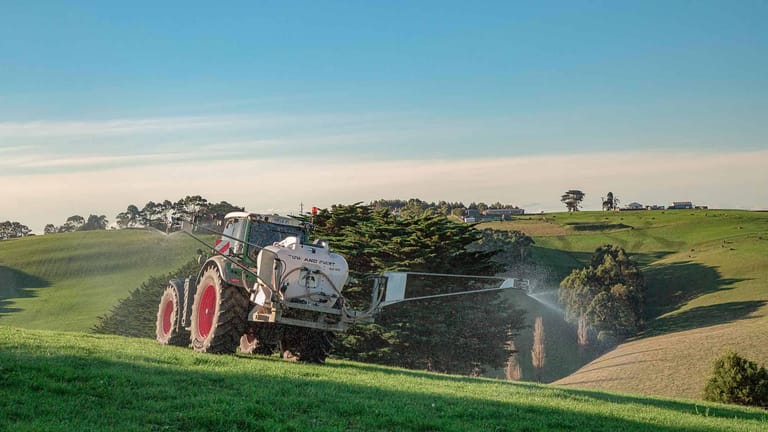

With a 1200 litre capacity the Tow and Fert Multi 1200 can dissolve 1⁄2 tonne of urea in cold water, or hold 1.2 tonne of dry fine particle product in suspension. The Multi 1200 features dual booms, with a spray width of up to 18 metres, so you can cover 1 hectare in just 3 minutes. Depending on the application rate, the Multi 1200 has the capacity to cover approx. 10 hectares in one load.
Using tractor hydraulics, the Multi 1200 is simple and hassle-free. Fitted with a 100% Stainless Steel trash pump and a silicon carbide mechanical seal specifically designed for this application, the Tow and Fert is built to last. All fittings are removable without tools and can be changed in the field.
BUILT TO OUTPERFORM
The most capable suspension sprayer, feature by feature
We built the Tow and Fert to do what others can't. Line them up against it and the gap speaks for itself.
| Feature | Tow and Fert | Other Sprayers |
|---|---|---|
| Even spread, under 15% COVEven application you can measure, test it on your own farm | Tow and FertYes | Other SprayersPartial |
| Dissolves 1 part urea to 2 parts water, fastHigh-concentration mixes without clogging or long load times | Tow and FertYes | Other SprayersNo |
| Suspends 2 parts lime flour to 1 part waterKeeps heavy fine particles in suspension, evenly, all the way to the nozzles | Tow and FertYes | Other SprayersNo |
| Boom recirculation on every nozzlePatented system, works even on single-nozzle machines - no blocking | Tow and FertYes | Other SprayersNo |
| Purpose-built Metalform 3 inch stainless pumpEngineered in-house after off-the-shelf pumps couldn't take the punishment | Tow and FertYes | Other SprayersNo |
| Runs at 22psi to protect biologicalsLow pressure keeps microbes and living inputs alive through application | Tow and FertYes | Other SprayersNo |
| Onboard weigh scalesKnow exactly what's in the tank, load accurately every time | Tow and FertYes | Other SprayersPartial |
| Companion Mix appMix rates, nozzle selection and ground speed worked out for you | Tow and FertYes | Other SprayersNo |
| 2,500+ strong farmer communityReal users sharing results, trials and advice, not just customers | Tow and FertYes | Other SprayersNo |
| Commercial-grade build, Over-engineered to outlastCommercial construction that keeps performing, day in day out | Tow and FertYes | Other SprayersNo |
| Travelling service & support - globallyOn-farm support and servicing, not a phone queue | Tow and FertYes | Other SprayersPartial |
| Pioneered and built in New ZealandDesigned and manufactured in Dannevirke, over 15 years in the paddock | Tow and FertYes | Other SprayersPartial |
Handover Video
Handover Video: The Multi 1200
Watch this informative video with Michael Smith to learn how the Tow and Fert Multi 1200 operates. In this walk-through, Michael demonstrates how to set up, operate, and get the most from the Tow and Fert Multi 1200 sprayer — a robust 1200 L liquid and fine particle applicator with up to 18 m spray width that attaches to your tractor for efficient coverage. You’ll learn key features, controls, and practical tips to maximise performance and safety.
