PTO or Hydraulic Agitation
The Multi 2800 can mix 1 tonne of urea in 2000 litres of water.

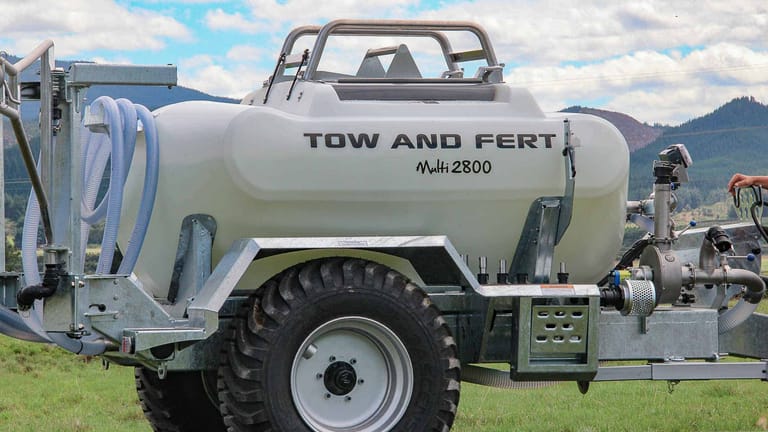

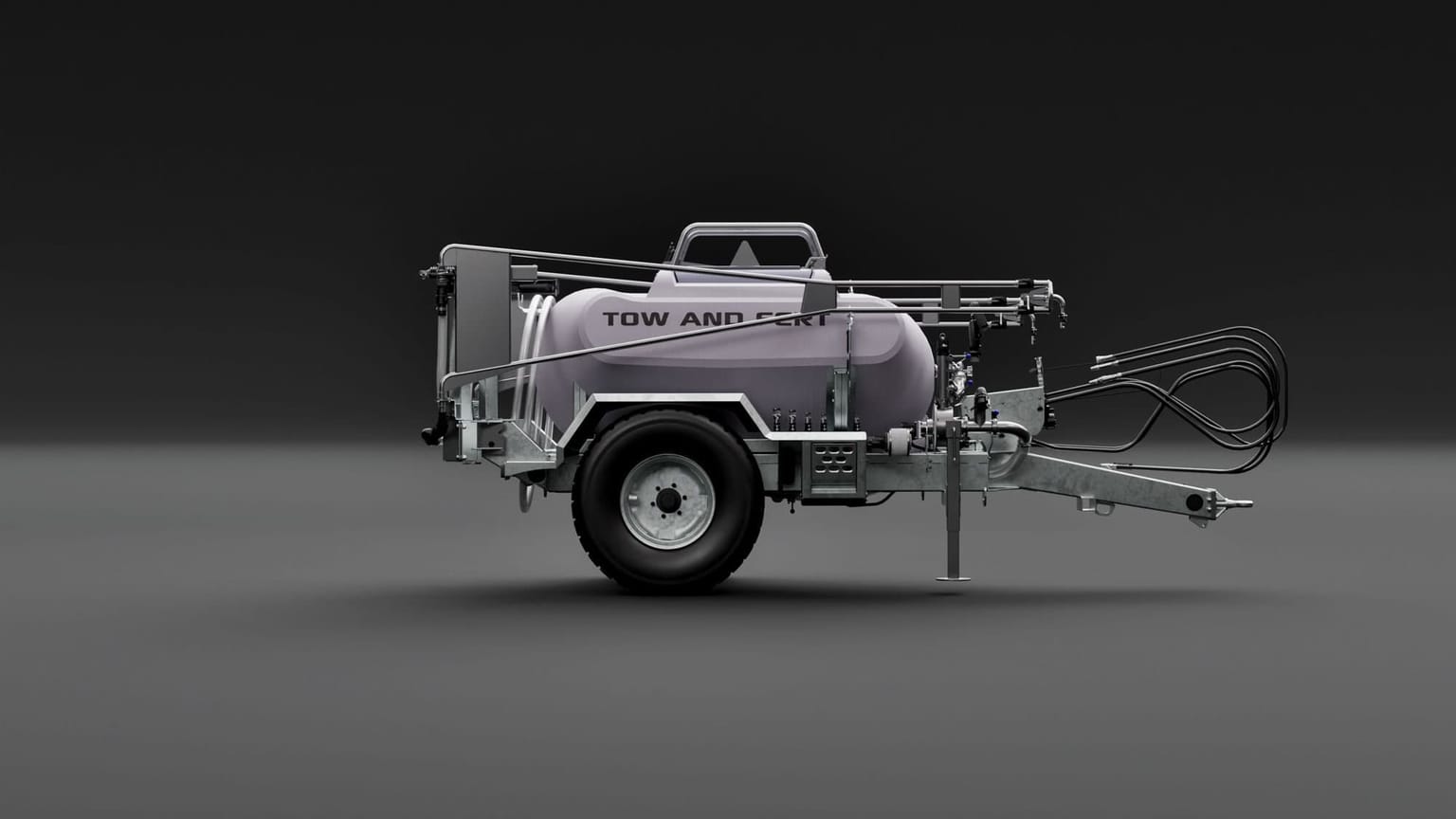

Tow and Fert Multi 2800
The Multi 2800 is designed to be towed by a tractor of a minimum 110hp. The best solution for those rolling and mid sized farms, the Multi 2800 is a versatile machine that will go places others won’t. The Multi 2800 can mix 1 tonne of urea in 2000 litres of water but if you are not a urea user, then the Multi 2800 is a perfect mid sized machine for all other products including fish hydrolysate, biological stimulants and seeds. It uses the PTO at 540rpm for mixing & agitation and hydraulics to run the specifically designed 3” trash pump found on all other Tow and Fert models for spraying. With the patented agitation technology in the tank, you can simply empty 3 tonne of fine particle fertiliser directly into the water without any pre-mixing or messy work. Combined with the optional crane, you can load 3 tonnes of fertiliser product into the Tow and Fert in just 15 minutes. With up to a 22 metre spread, the Multi 2800 can cover 1 hectare in just 3 minutes at 12 km/hr (8 mph). With a capacity of up to 20 hectares per load, this Tow and Fert makes light work of a large job.
Tank size
2800 L
Spray width
22 m
Area per load
20 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
110hp tractor or greater
Gallery
Tank size
2800 L
Spray width
22 m
Area per load
20 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
110hp tractor or greater
Agitation powered by
PTO @ 540 RPM or Hydraulic Motor – 55 litres/min
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulic Motor – 33 litres/min
Dry weight
2,100kg
Full weight
up to 6,500kg (depending on mix SG)
Size
4.90m (L) x 2.30m (W) x 2.50m (H)
Specifications
Tank size
2800 L
Spray width
22 m
Area per load
20 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
110hp tractor or greater
Agitation powered by
PTO @ 540 RPM or Hydraulic Motor – 55 litres/min
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulic Motor – 33 litres/min
Dry weight
2,100kg
Full weight
up to 6,500kg (depending on mix SG)
Size
4.90m (L) x 2.30m (W) x 2.50m (H)
Optional extras
In-cab Rate Assist
Crane Kit
Section Control
Hort/Tree Crop Kit

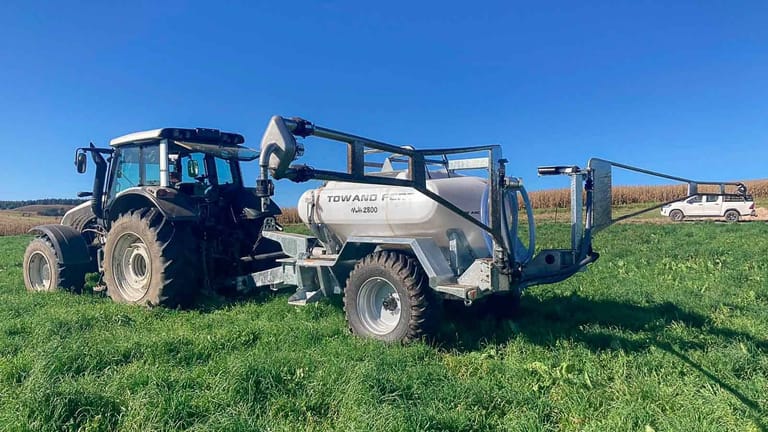

Tow Hitch

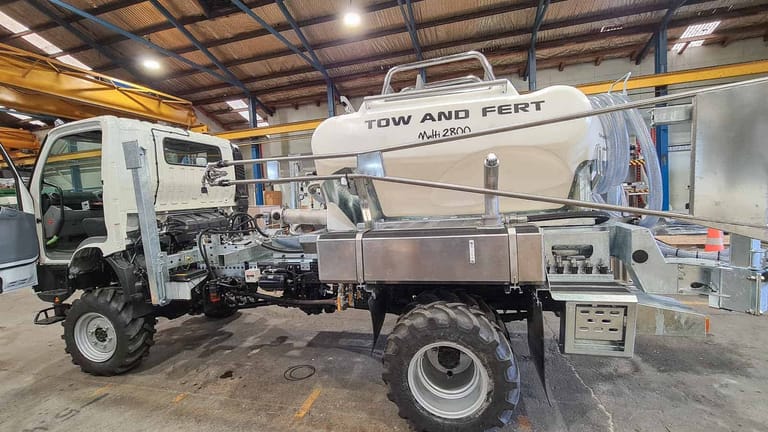

Truck Mount
Stationary Mixing Station
Compost Basket
Description
Not too big, not too small.
The Multi 2800 is designed to be towed by a tractor of a minimum 110hp. The best solution for those rolling and mid sized farms, the Multi 2800 is a versatile machine that will go places others won’t.
The Multi 2800 can mix 1 tonne of urea in 2000 litres of water. If you are not a urea user, then the Multi 2800 is a perfect mid sized machine for all other products including fish hydrolyslate, biological stimulants and seeds.

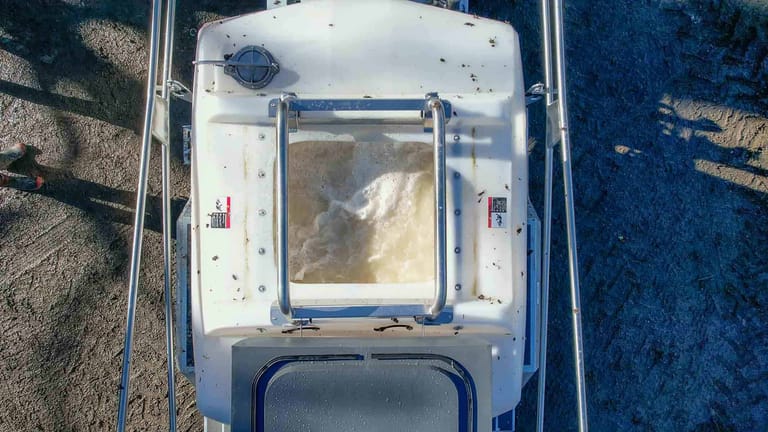

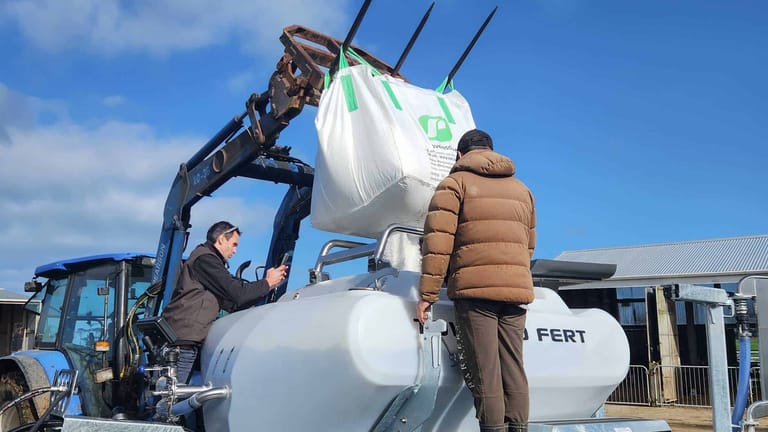

It uses the PTO at 540rpm for mixing & agitation and hydraulics to run the specifically designed 3” trash pump found on all other Tow and Fert models for spraying. With the patented agitation technology in the tank, you can simply empty 3 tonne of fine particle fertiliser directly into the water without any pre-mixing or messy work. Combined with the optional crane, you can load 3 tonnes of fertiliser product into the Tow and Fert in just 15 minutes.

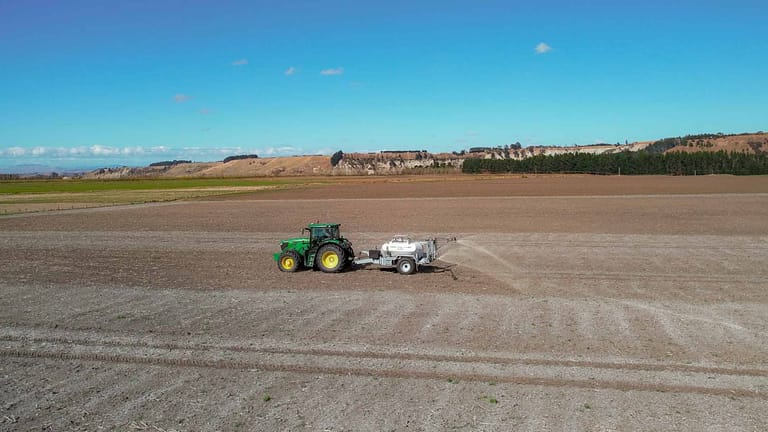

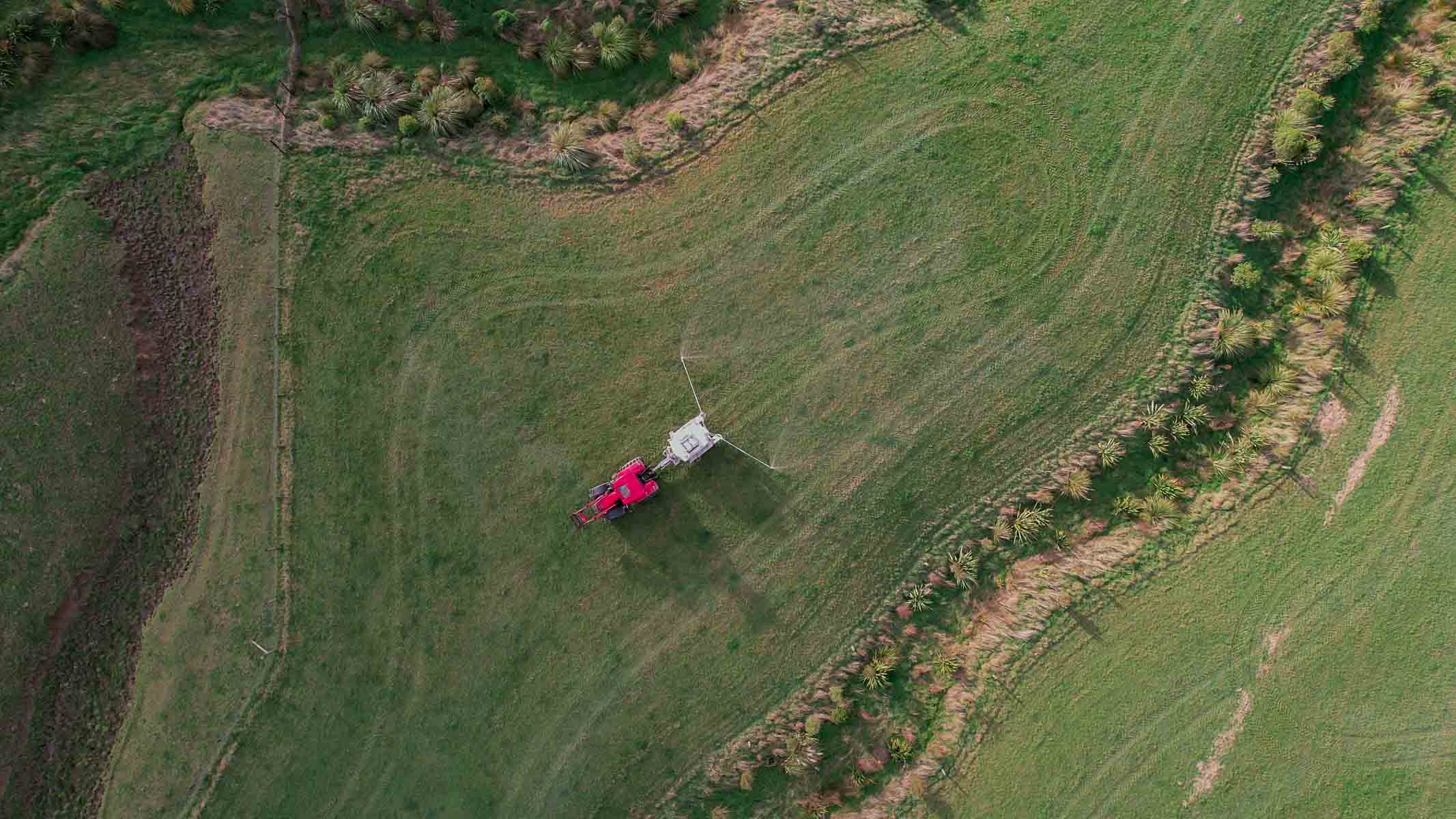

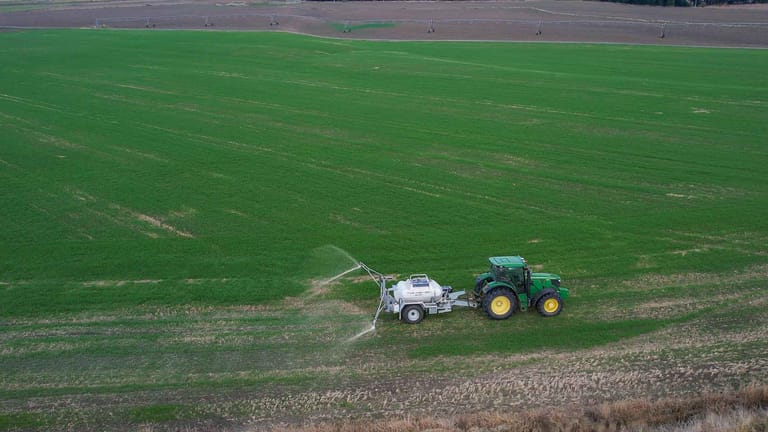

With up to a 22 metre spread, the Multi 2800 can cover 1 hectare in just 3 minutes at 12 km/hr (8 mph). With a capacity of up to 20 hectares per load, this Tow and Fert makes light work of a large job.
BUILT TO OUTPERFORM
The most capable suspension sprayer, feature by feature
We built the Tow and Fert to do what others can't. Line them up against it and the gap speaks for itself.
| Feature | Tow and Fert | Other Sprayers |
|---|---|---|
| Even spread, under 15% COVEven application you can measure, test it on your own farm | Tow and FertYes | Other SprayersPartial |
| Dissolves 1 part urea to 2 parts water, fastHigh-concentration mixes without clogging or long load times | Tow and FertYes | Other SprayersNo |
| Suspends 2 parts lime flour to 1 part waterKeeps heavy fine particles in suspension, evenly, all the way to the nozzles | Tow and FertYes | Other SprayersNo |
| Boom recirculation on every nozzlePatented system, works even on single-nozzle machines - no blocking | Tow and FertYes | Other SprayersNo |
| Purpose-built Metalform 3 inch stainless pumpEngineered in-house after off-the-shelf pumps couldn't take the punishment | Tow and FertYes | Other SprayersNo |
| Runs at 22psi to protect biologicalsLow pressure keeps microbes and living inputs alive through application | Tow and FertYes | Other SprayersNo |
| Onboard weigh scalesKnow exactly what's in the tank, load accurately every time | Tow and FertYes | Other SprayersPartial |
| Companion Mix appMix rates, nozzle selection and ground speed worked out for you | Tow and FertYes | Other SprayersNo |
| 2,500+ strong farmer communityReal users sharing results, trials and advice, not just customers | Tow and FertYes | Other SprayersNo |
| Commercial-grade build, Over-engineered to outlastCommercial construction that keeps performing, day in day out | Tow and FertYes | Other SprayersNo |
| Travelling service & support - globallyOn-farm support and servicing, not a phone queue | Tow and FertYes | Other SprayersPartial |
| Pioneered and built in New ZealandDesigned and manufactured in Dannevirke, over 15 years in the paddock | Tow and FertYes | Other SprayersPartial |
Handover Video
Handover Video: The Multi 2800 & Multi 4000
This video will give you an overview of how the Tow and Fert Multi 2800 and Multi 4000 operates.
Get in touch
Request information or book a demo
Talk to a specialist about Tow and Fert Multi 2800 and how it can work for your operation.
