External Suction Kit
On board suction kit for filling from a tank, trough, dam, IBC or stream
Boom type
Built for smaller farms, and for farmers wanting a second machine.
Tow and Fert Multi 500

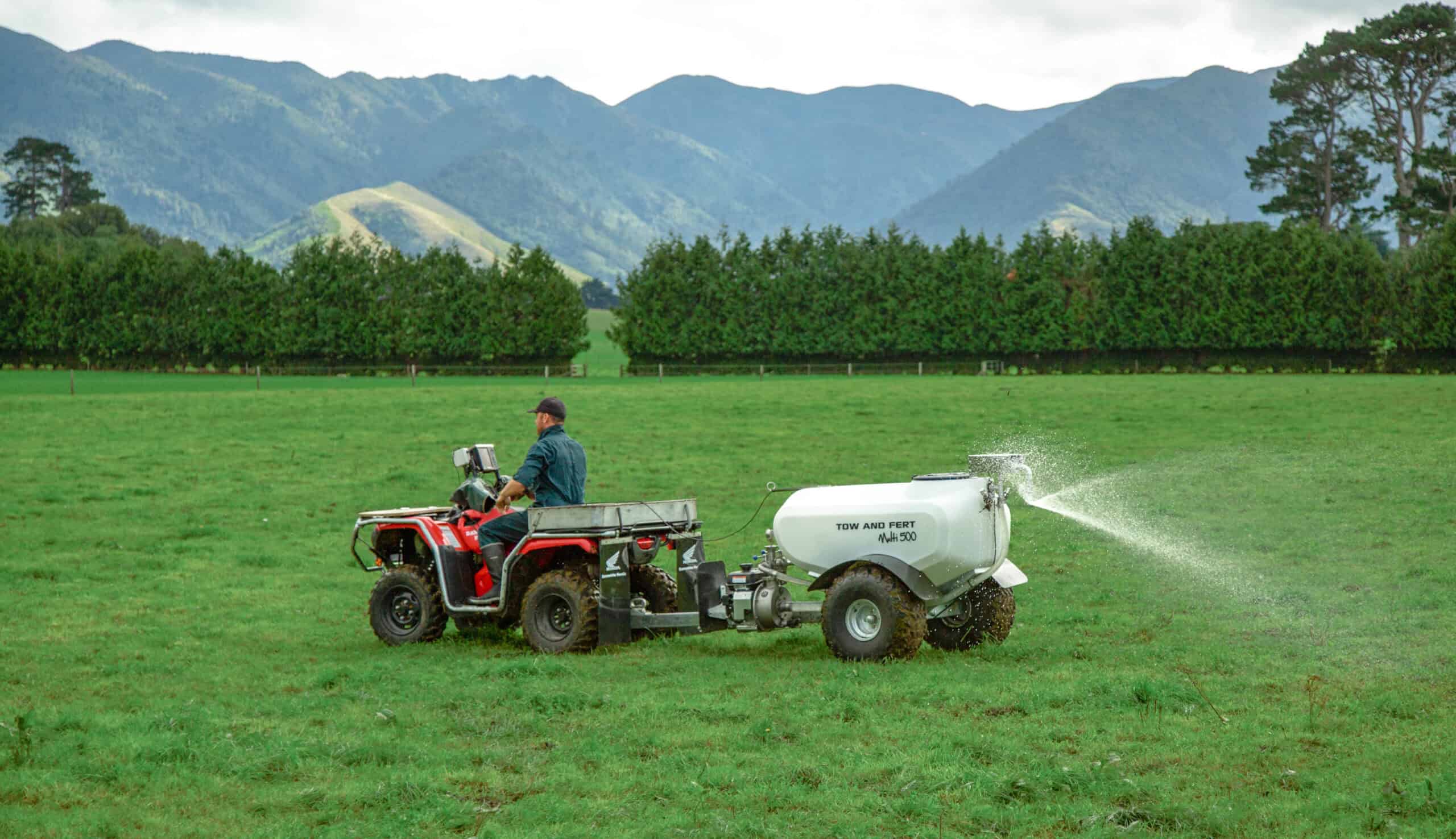

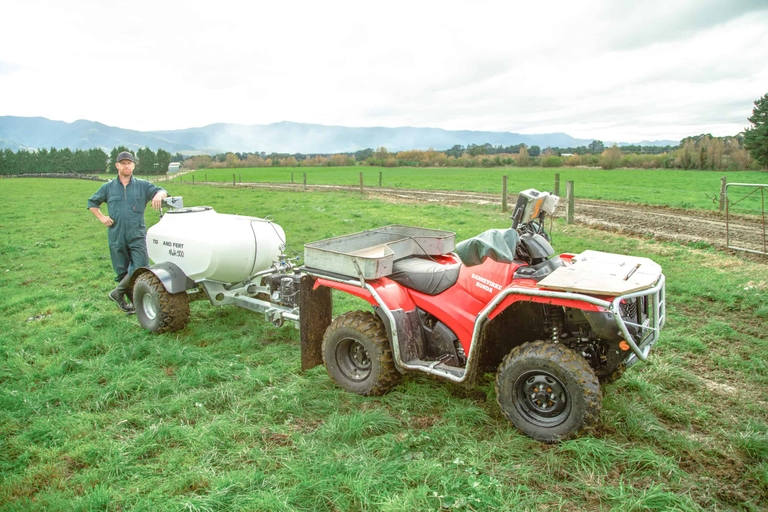

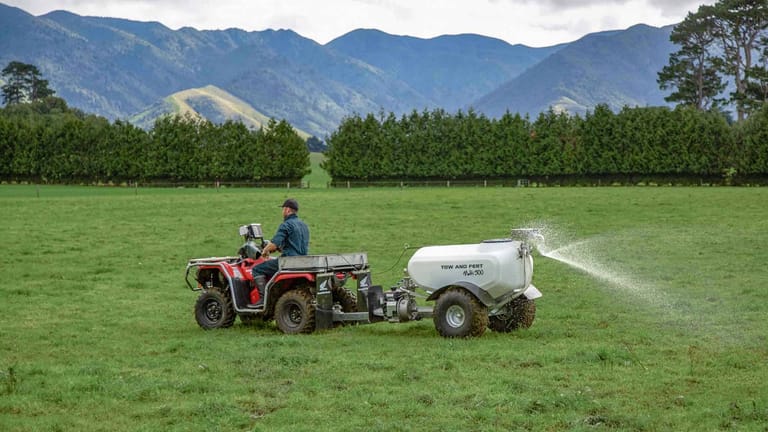

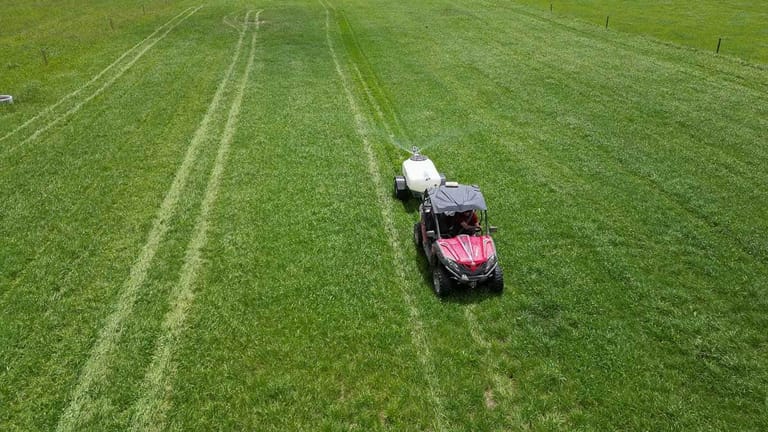

The Tow and Fert Multi 500 is a completely stand alone machine, towed behind a large ATV, side-by-side or ute. It dissolves urea in cold water and holds fine particle products in suspension, so you can get started on the Tow and Fert system without a big tractor.
Tank size
500 L
Spray width
8 m
Area per load
4 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
ATV or side-by-side or Ute

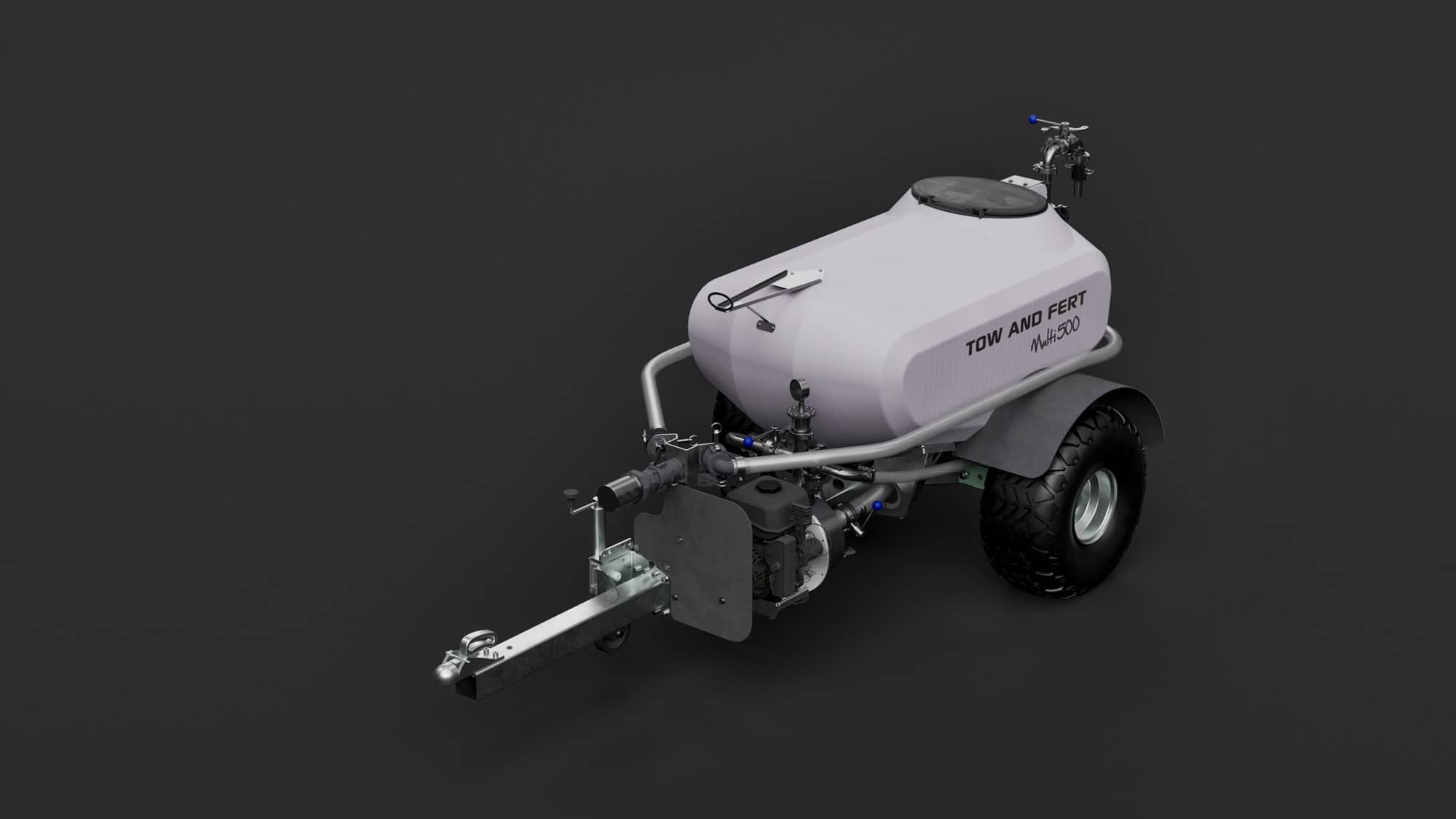

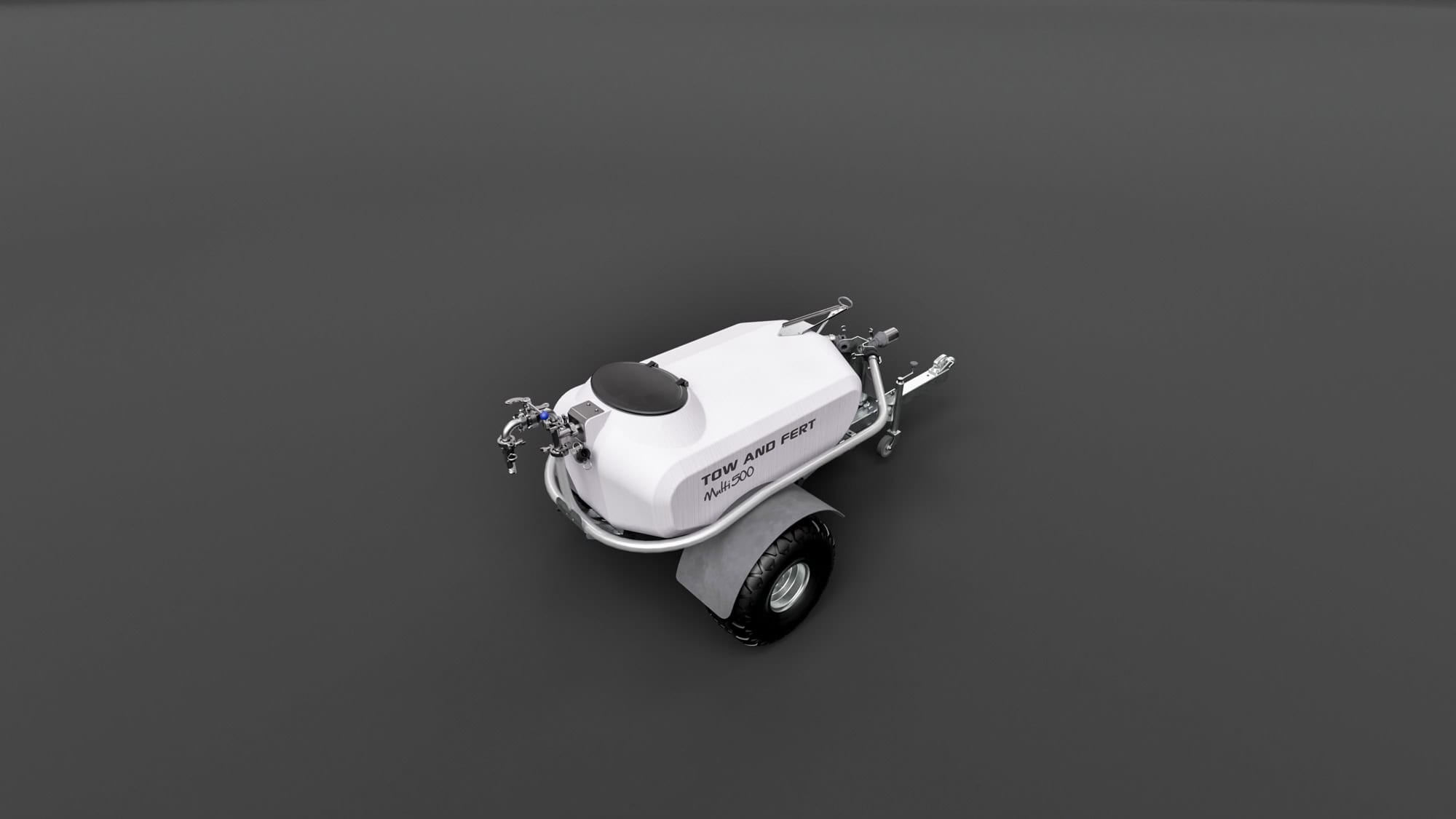

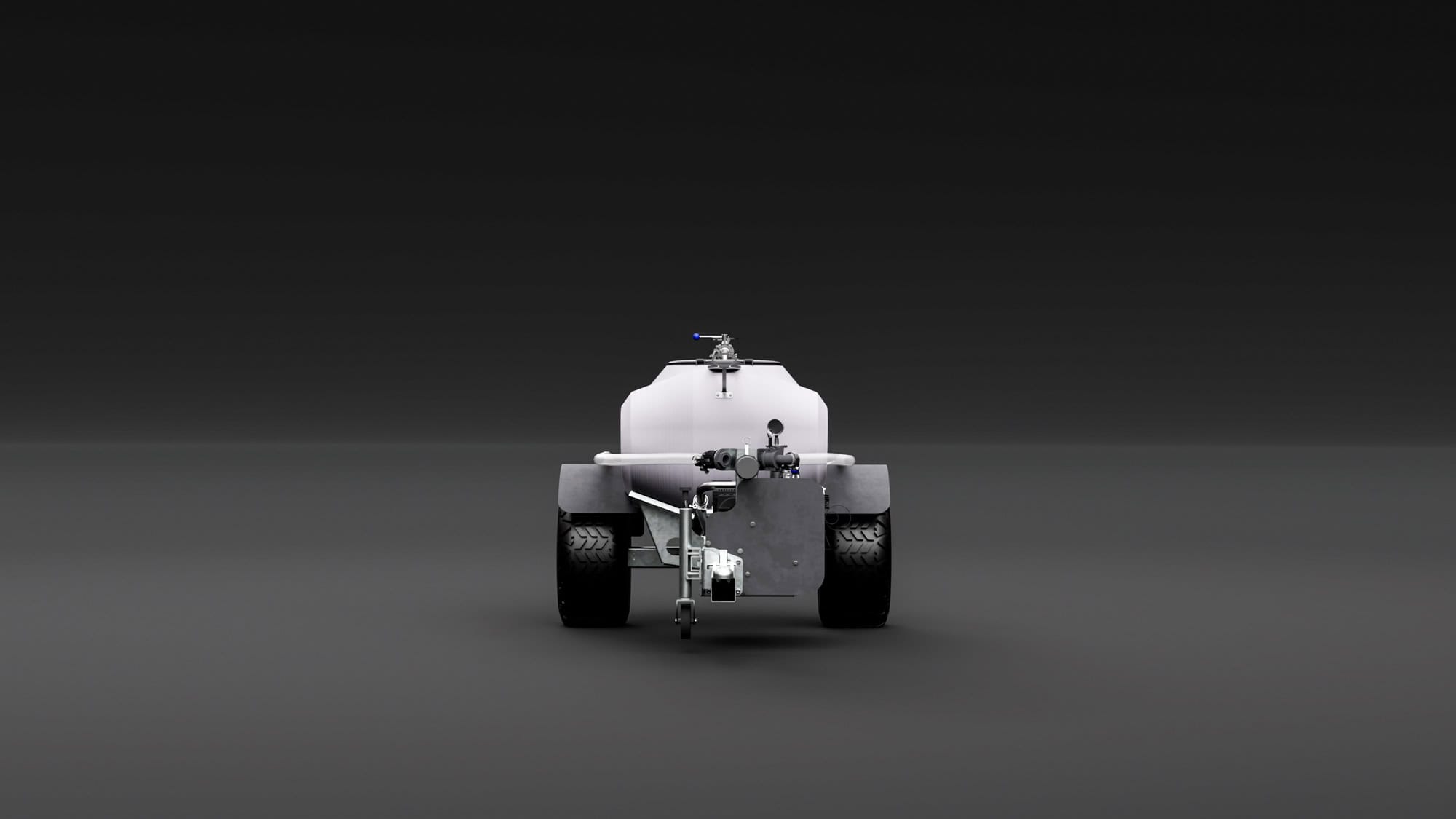

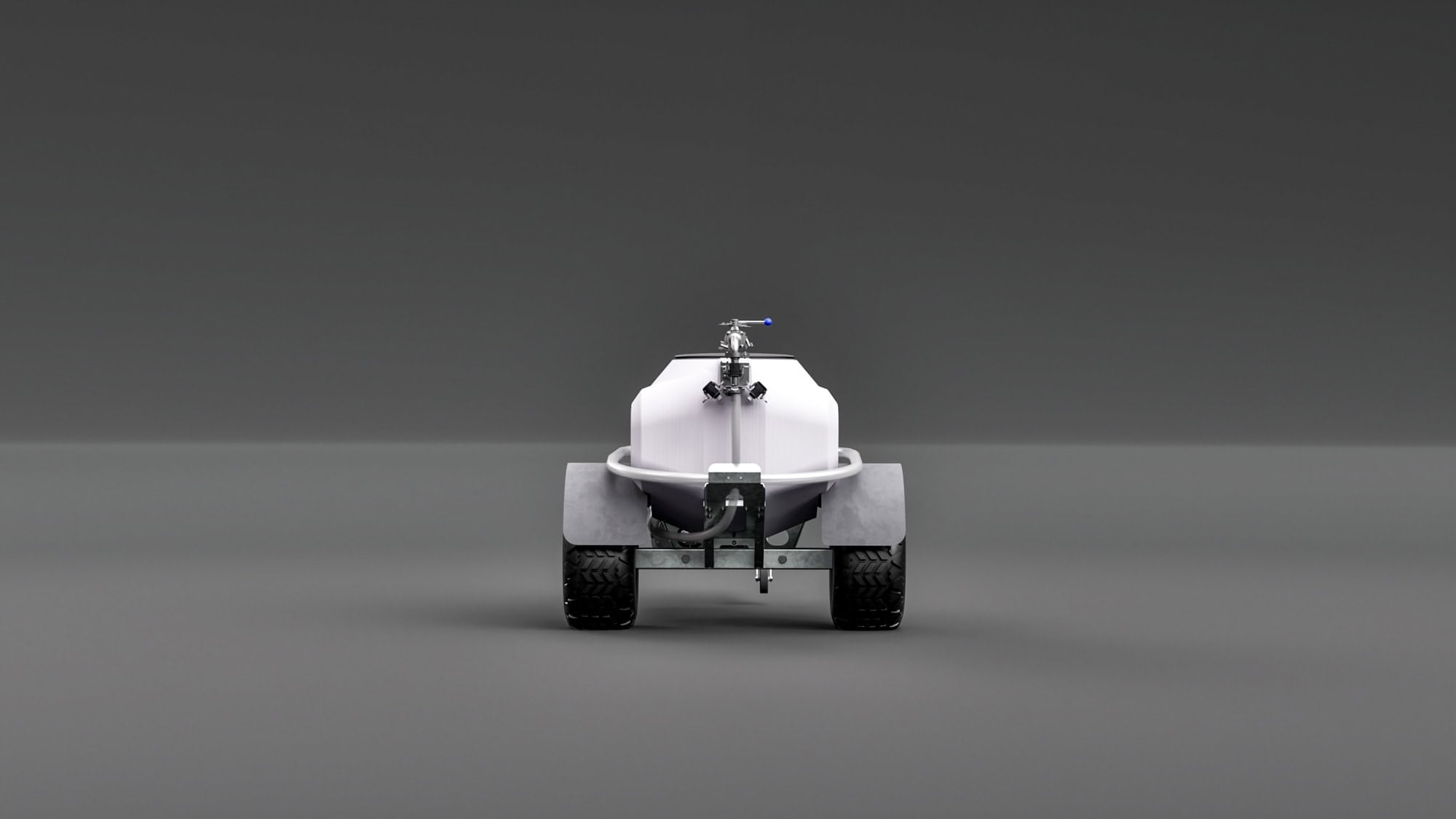

Gallery
Switch above to view Pasture setup.
Boom type
Tank size
500 L
Spray width
8 m
Area per load
4 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
ATV or side-by-side or Ute
Agitation powered by
On board Petrol Engine – Kohler 5.5hp
Pump model
Metalform Stainless 2” Centrifugal Trash Pump
Pump performance
750 litres per minute at 0 metres lift. Max lift = 3 metres
Pump powered by
On board Petrol Engine
Dry weight
120kg
Full weight
up to 800kg
Size
2.30m (L) x 1.80m (W) x 1.70m (H)
Specifications
Tank size
500 L
Spray width
8 m
Area per load
4 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed
Attachment vehicle
ATV or side-by-side or Ute
Agitation powered by
On board Petrol Engine – Kohler 5.5hp
Pump model
Metalform Stainless 2” Centrifugal Trash Pump
Pump performance
750 litres per minute at 0 metres lift. Max lift = 3 metres
Pump powered by
On board Petrol Engine
Dry weight
120kg
Full weight
up to 800kg
Size
2.30m (L) x 1.80m (W) x 1.70m (H)
Optional extras
Electronic Spray Operation
Control the spray on/off with a wired switch instead of strings
Hort/Tree Crop Kit
Hort/Tree crop attachment (maintains pasture nozzle capablity)

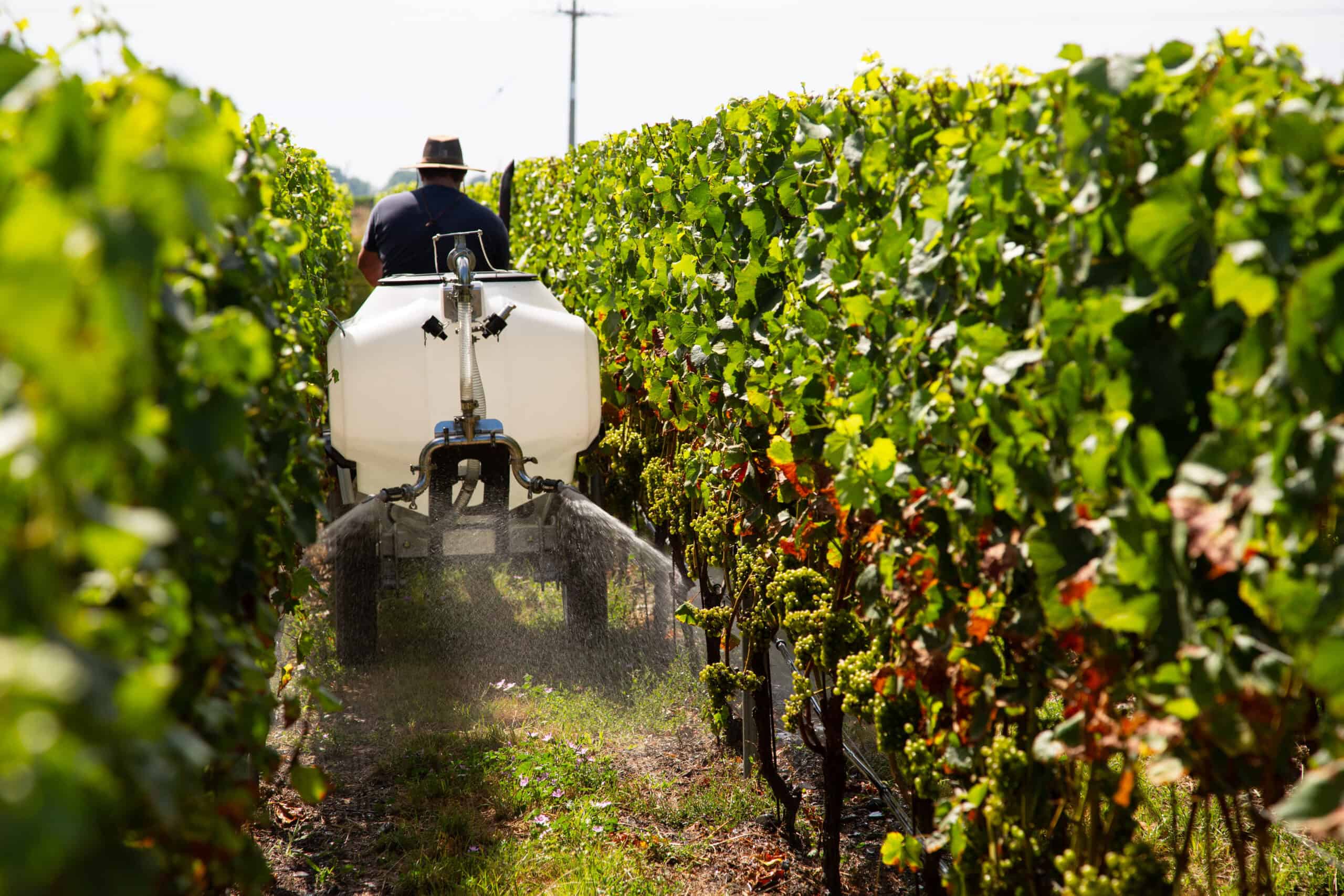

Viticulture Kit
Fan nozzles on a viticulture boom
Compost Basket
A drop in compost basket for making compost extract in the tank.
Description

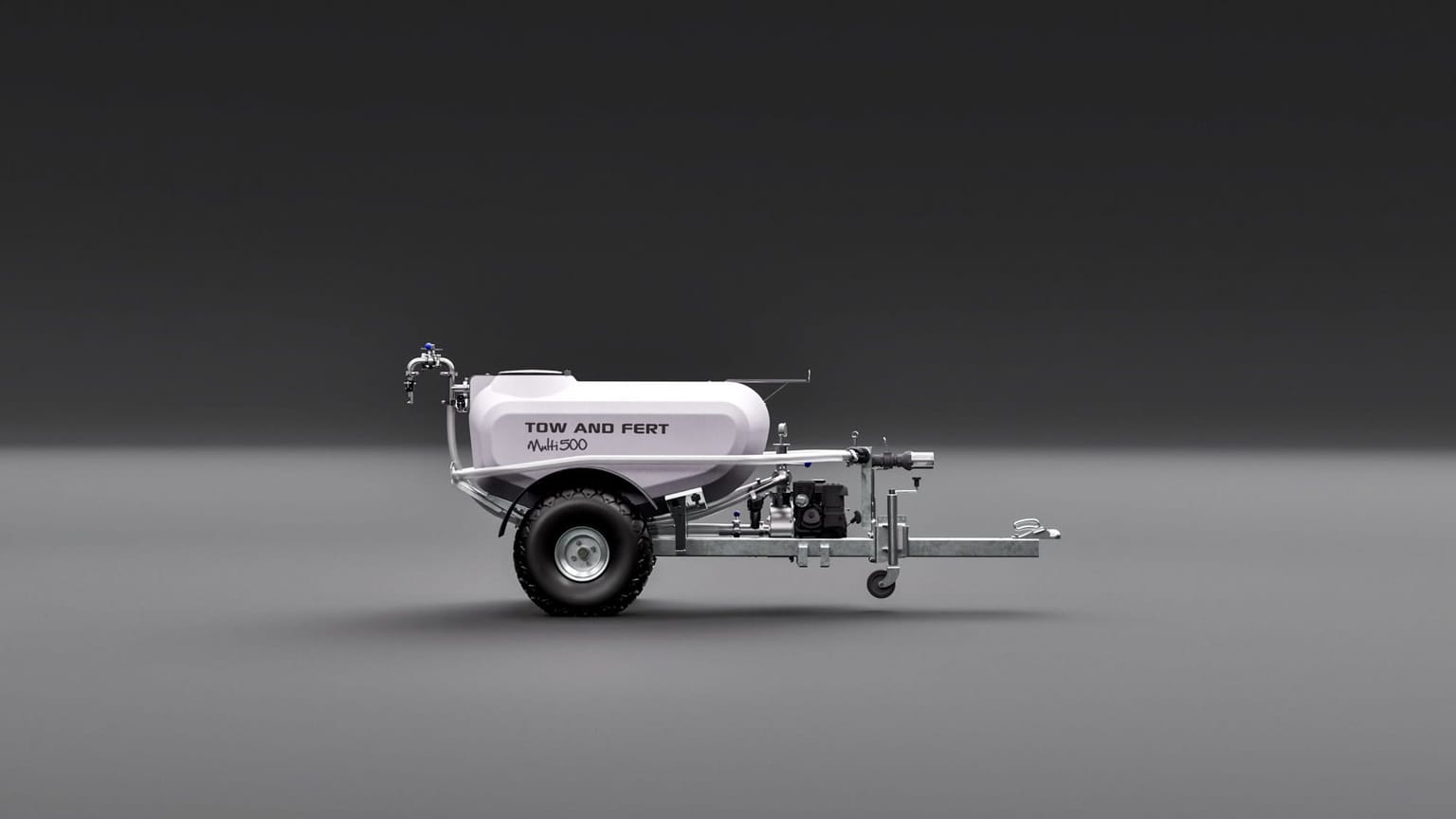

The Tow and Fert Multi 500 is a completely stand alone machine. It runs off its own onboard Kohler 5.5hp petrol engine, so it needs nothing from the vehicle towing it, and it sits behind a large ATV, side-by-side or ute.

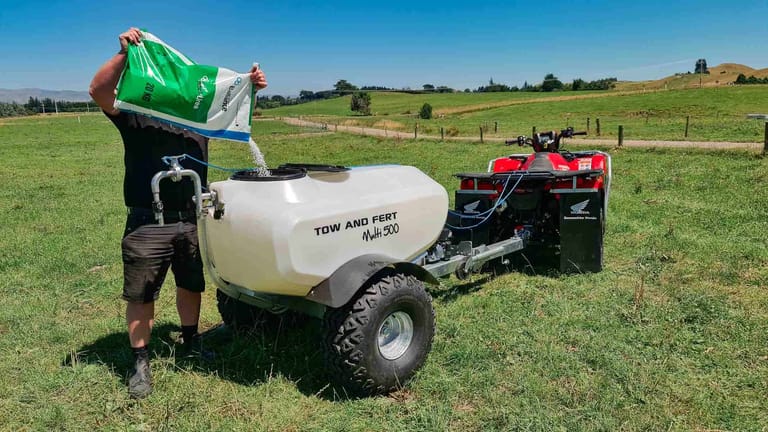

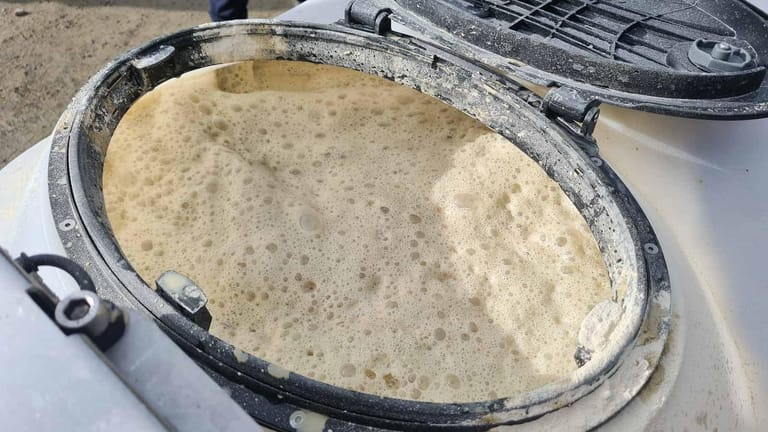

With a 500 litre tank it dissolves up to 150 kg of urea in cold water, or holds up to 300 kg of dry fine particle product in suspension. Magnesium oxide, lime flour and trace elements go out dissolved or suspended, spread even, with no dust.

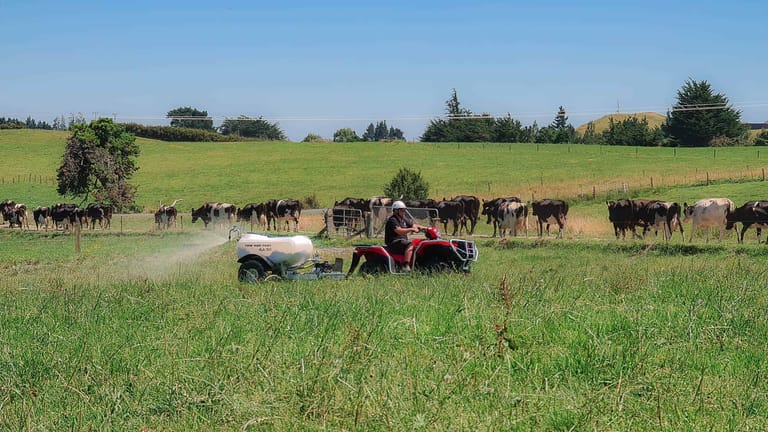

Because it’s your machine, you put fertiliser on when it suits the paddock and the plant, not when a contractor can fit you in. On a dairy farm that can mean spraying once the cows have walked off.
The Multi 500 features our re-circulation boom design, which delivers a 7 to 8 metre spread through one nozzle. The re-circulation boom means product cannot settle out in the dead areas found on typical boom sprayers.

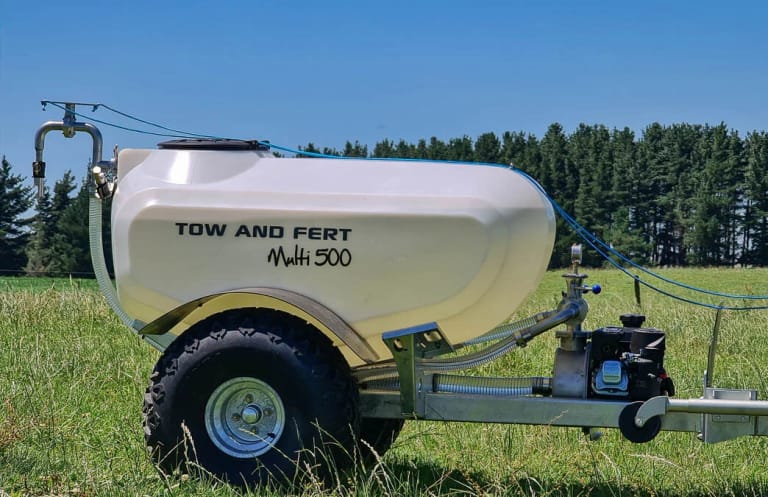

It’s fitted with a Metalform 100% stainless steel trash pump and a silicon carbide mechanical seal. All fittings come off without a toolbox and can be changed in the paddock.

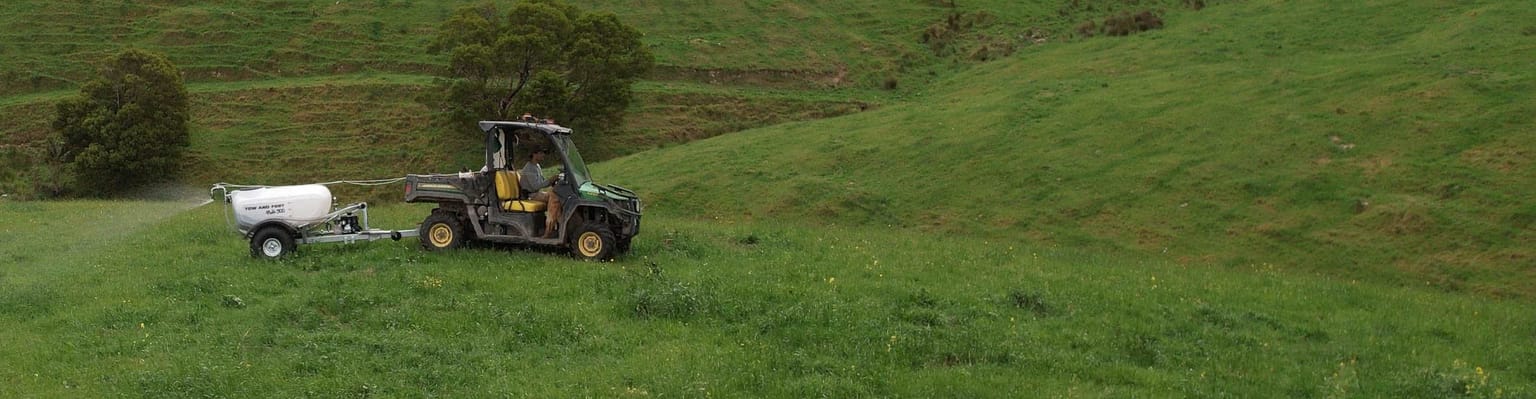

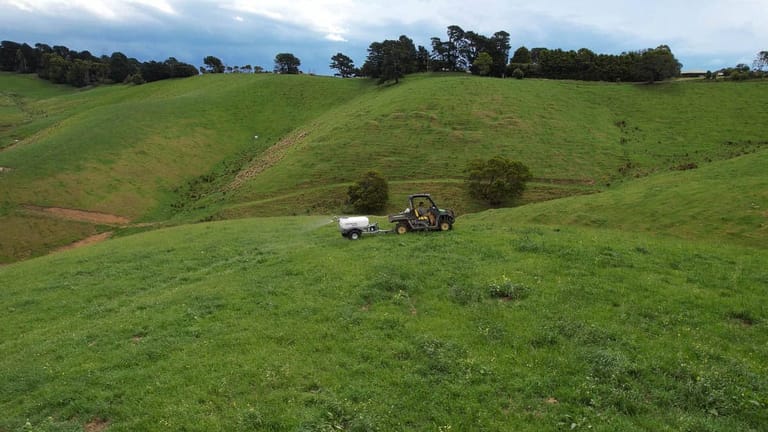

A low centre of gravity makes it a versatile machine on rolling country. Depending on your application rate, the Multi 500 covers around 3 to 4 hectares in 25 minutes.
BUILT TO OUTPERFORM
The most capable suspension sprayer, feature by feature
We built the Tow and Fert to do what others can't. Line them up against it and the gap speaks for itself.
| Feature | Tow and Fert | Other Sprayers |
|---|---|---|
| Even spread, under 15% COVEven application you can measure, test it on your own farm | Tow and FertYes | Other SprayersPartial |
| Dissolves 1 part urea to 2 parts water, fastHigh-concentration mixes without clogging or long load times | Tow and FertYes | Other SprayersNo |
| Suspends 2 parts lime flour to 1 part waterKeeps heavy fine particles in suspension, evenly, all the way to the nozzles | Tow and FertYes | Other SprayersNo |
| Boom recirculation on every nozzlePatented system, works even on single-nozzle machines - no blocking | Tow and FertYes | Other SprayersNo |
| Purpose-built Metalform 3 inch stainless pumpEngineered in-house after off-the-shelf pumps couldn't take the punishment | Tow and FertYes | Other SprayersNo |
| Runs at 22psi to protect biologicalsLow pressure keeps microbes and living inputs alive through application | Tow and FertYes | Other SprayersNo |
| Onboard weigh scalesKnow exactly what's in the tank, load accurately every time | Tow and FertYes | Other SprayersPartial |
| Companion Mix appMix rates, nozzle selection and ground speed worked out for you | Tow and FertYes | Other SprayersNo |
| 2,500+ strong farmer communityReal users sharing results, trials and advice, not just customers | Tow and FertYes | Other SprayersNo |
| Commercial-grade build, Over-engineered to outlastCommercial construction that keeps performing, day in day out | Tow and FertYes | Other SprayersNo |
| Travelling service & support - globallyOn-farm support and servicing, not a phone queue | Tow and FertYes | Other SprayersPartial |
| Pioneered and built in New ZealandDesigned and manufactured in Dannevirke, over 15 years in the paddock | Tow and FertYes | Other SprayersPartial |
Handover Video
Handover Video: The Multi 500
This video will give you an overview of how the Tow and Fert Multi 500 operates. The Tow and Fert is a versatile liquid foliar sprayer with quick return on investment. Tow and Fert will dissolve your solid Urea in it’s tank, keep Ultra Fine Particle Fertilisers suspended in liquid and even allow you to spray weed spray and the small seeds your pasture needs all in one pass, saving you money spent on fertiliser, fuel and tractor maintenance.
