Nurse Wagon
Sprayer and nurse wagon in one.

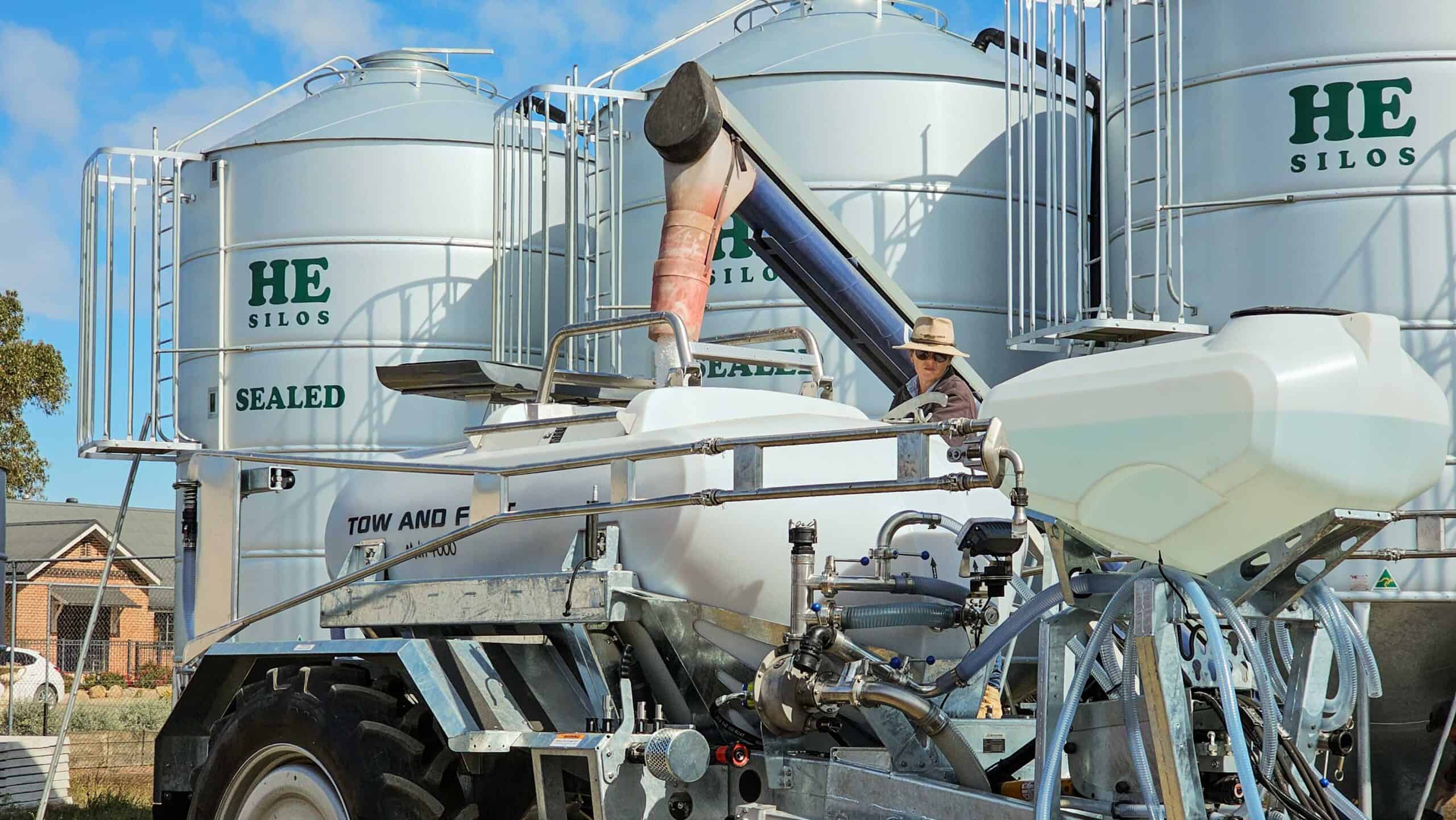

Tow and Fert MultiCrop 4000
The MultiCrop 4000 is a dual purpose ultra fine particle sprayer and nurse wagon for the cropping industry. It applies fertiliser, biologicals, ultra-fine particles, through nozzles designed to stay clear on mixes that block conventional sprayers.
Tank size
4000 L
Area per load
40 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed (optional dolly)
Attachment vehicle
160hp tractor or greater
Agitation powered by
55 L/min hydraulic motor

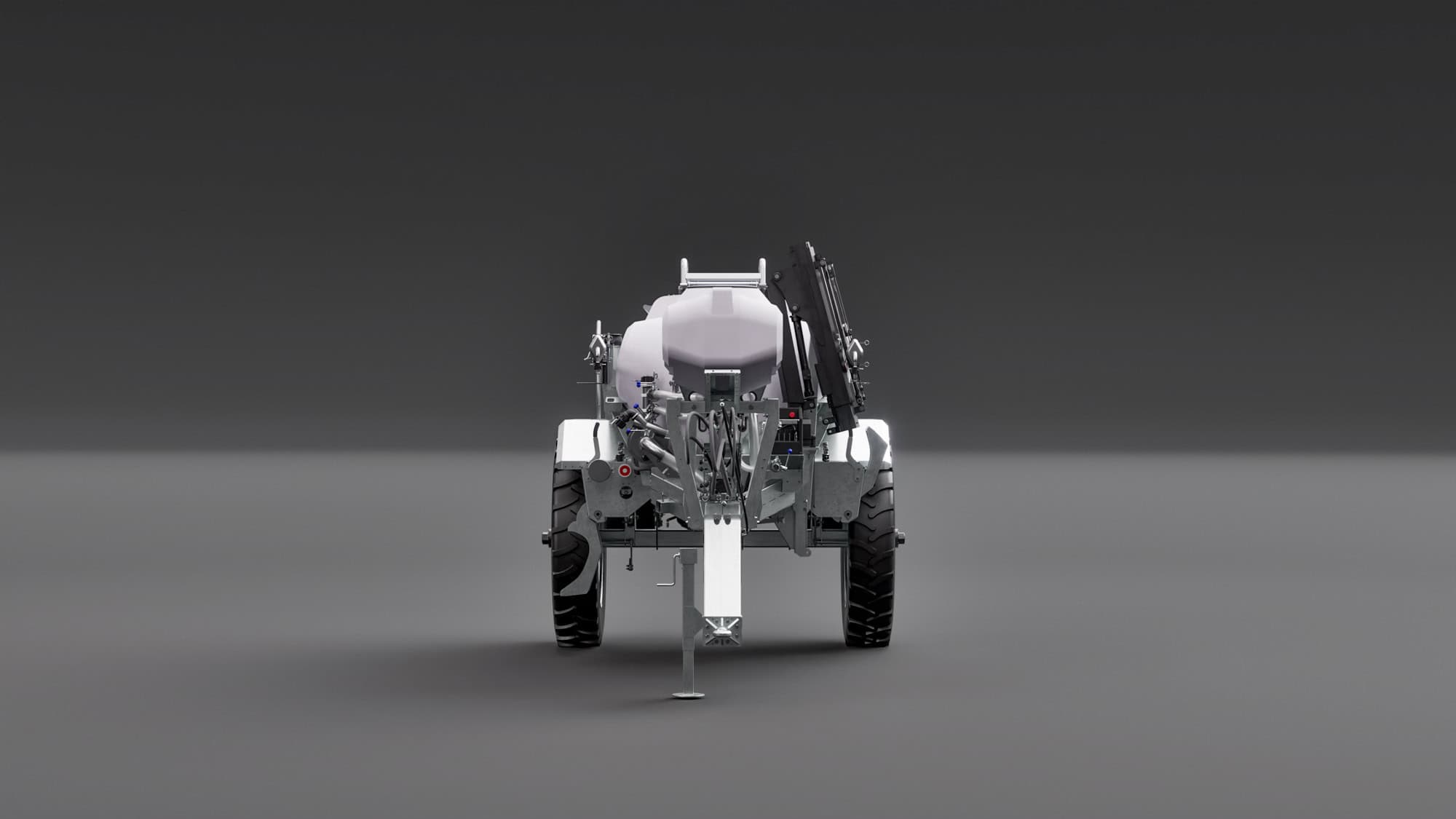

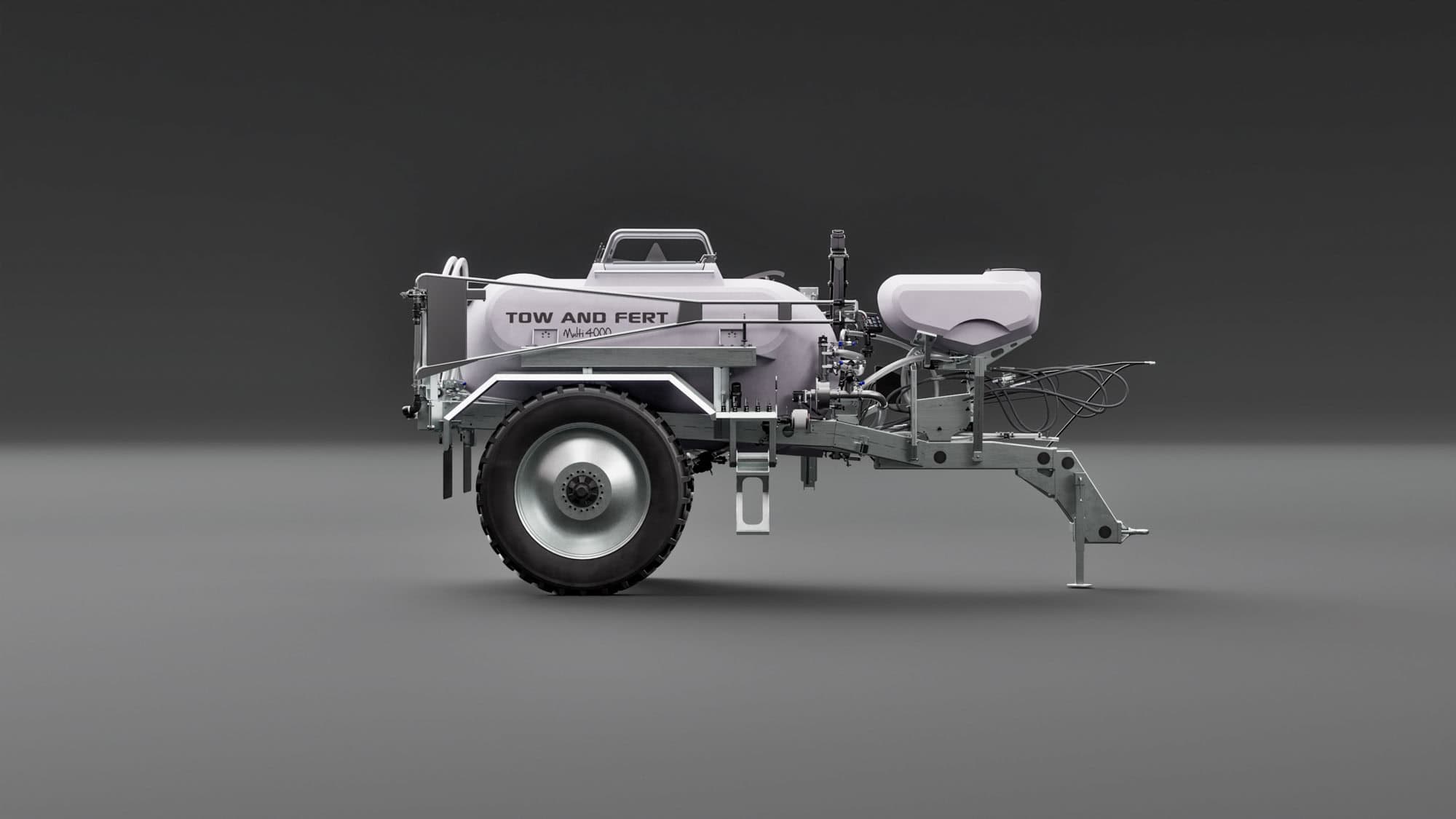

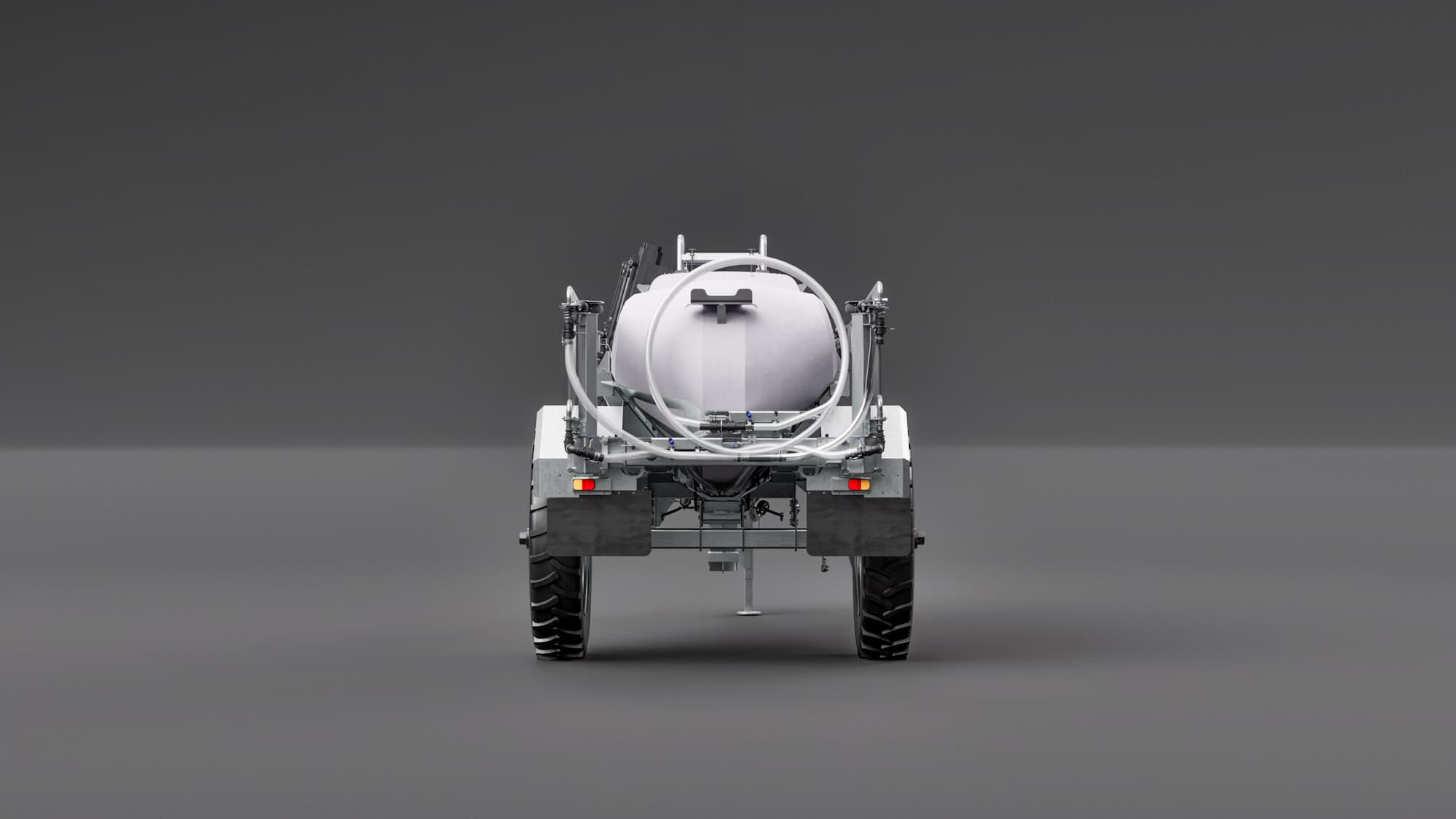

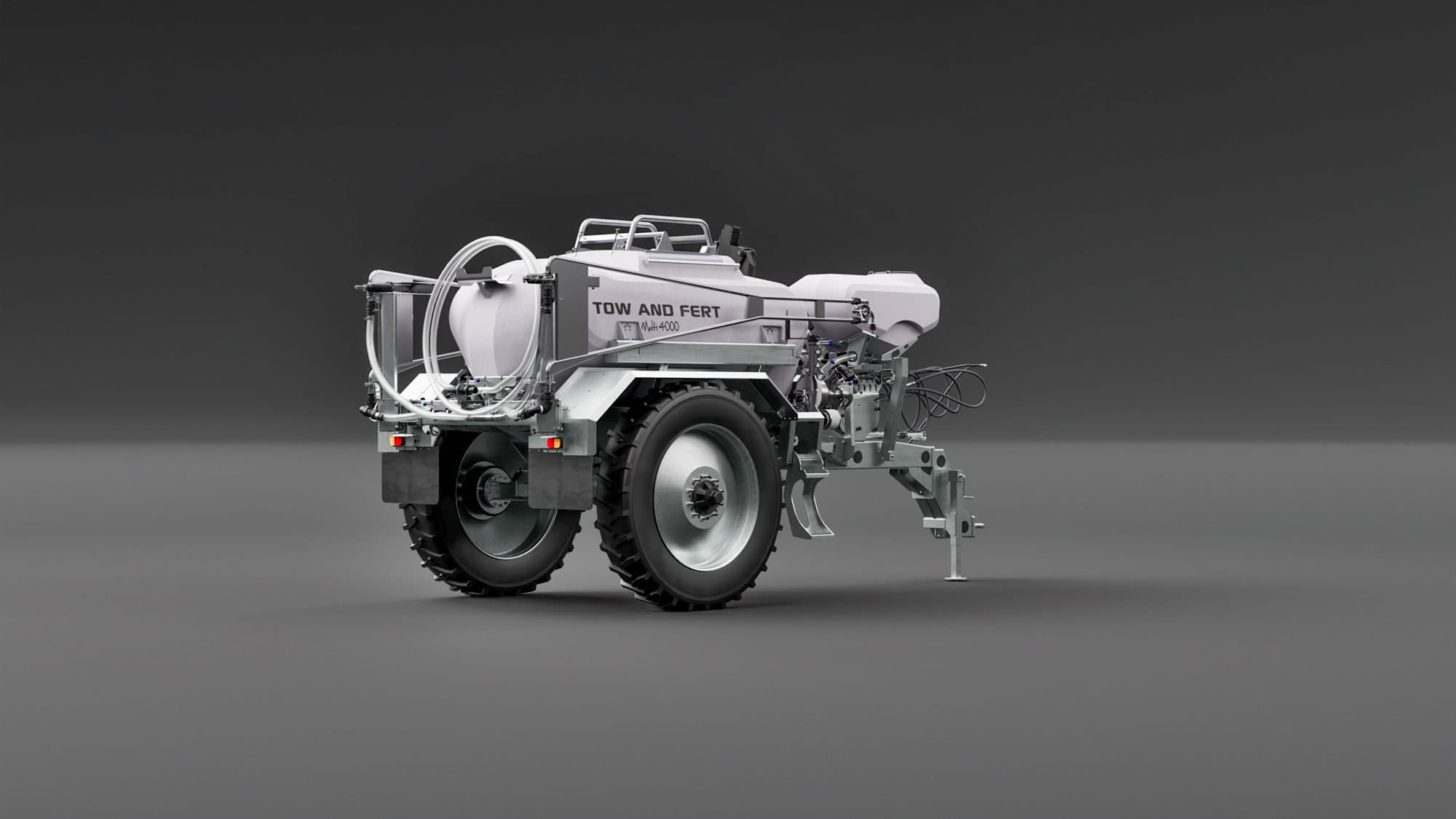

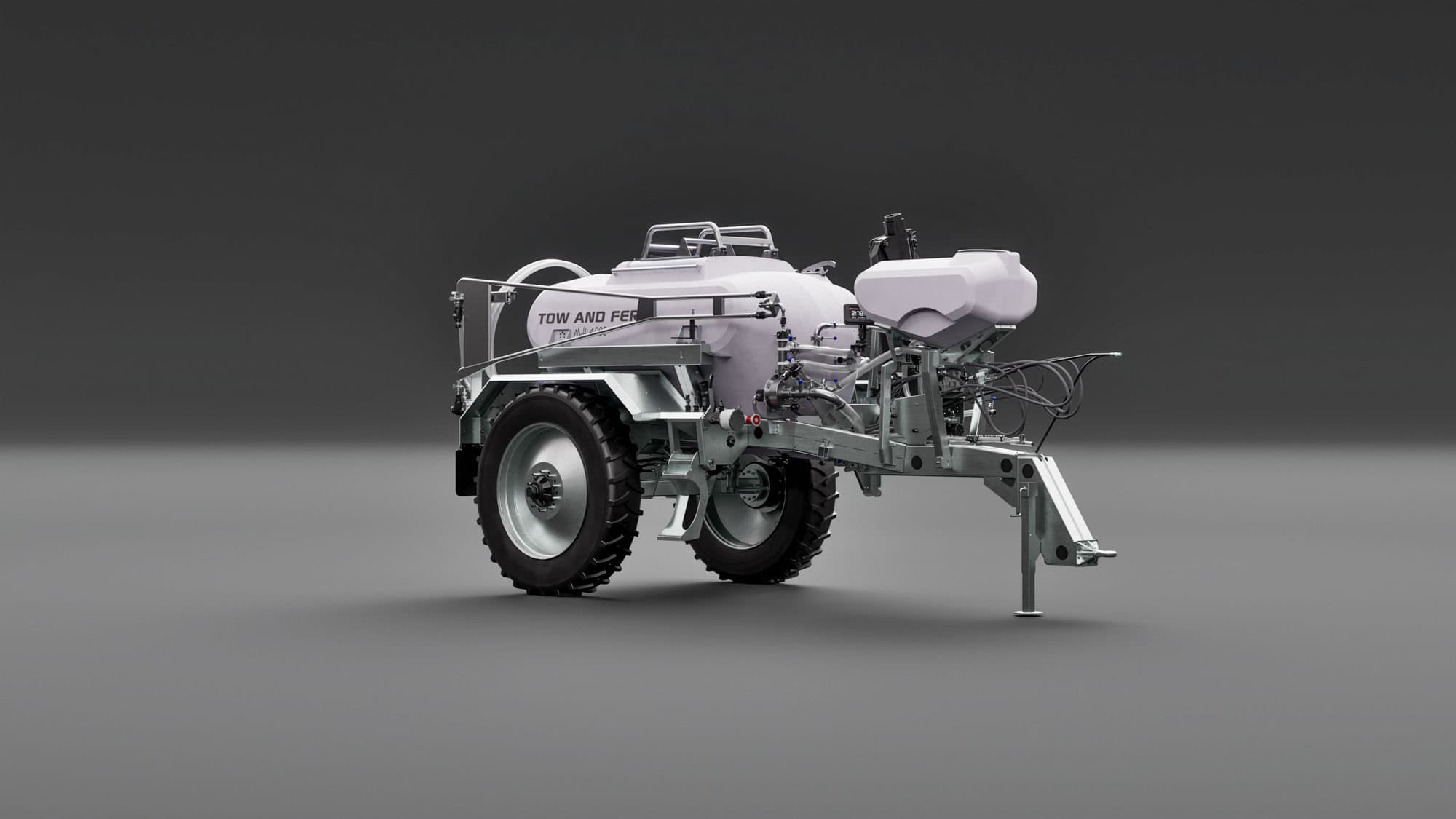

Gallery
Tank size
4000 L
Area per load
40 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed (optional dolly)
Attachment vehicle
160hp tractor or greater
Agitation powered by
55 L/min hydraulic motor
Pump model

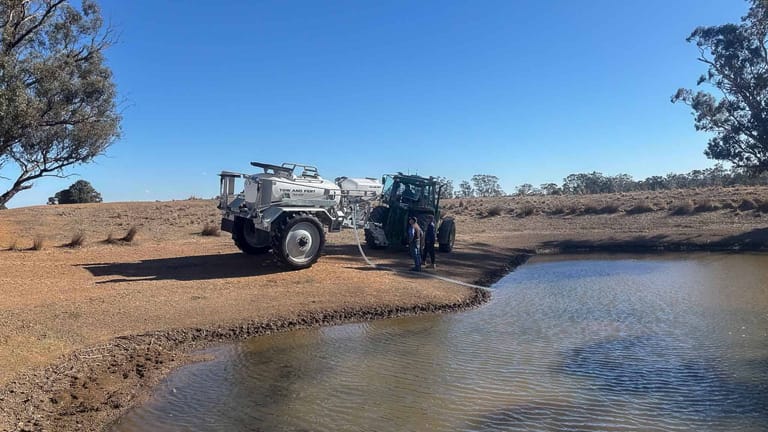

Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulics – 33 litres/min
Dry weight
4,100kg
Full weight
up to 10,600kg (depending on mix SG)
Size
6.20m (L) x 2.80m(min) – 3.40m (max) (W) x 3.50m (H)
Specifications
Tank size
4000 L
Area per load
40 ha
Application rate
50 – 500 litres/hectare l/ha
Attachment style
Trailed (optional dolly)
Attachment vehicle
160hp tractor or greater
Agitation powered by
55 L/min hydraulic motor
Pump model
Metalform Stainless 3” Centrifugal Trash Pump
Pump performance
1200 litres per minute at 0 metres lift. Max lift = 4 metres
Pump powered by
Hydraulics – 33 litres/min
Dry weight
4,100kg
Full weight
up to 10,600kg (depending on mix SG)
Size
6.20m (L) x 2.80m(min) – 3.40m (max) (W) x 3.50m (H)
Optional extras
In-cab Rate Assist
Crane Kit
Section Control
Flush Tank
Tow Dolly
Compost Basket
Description

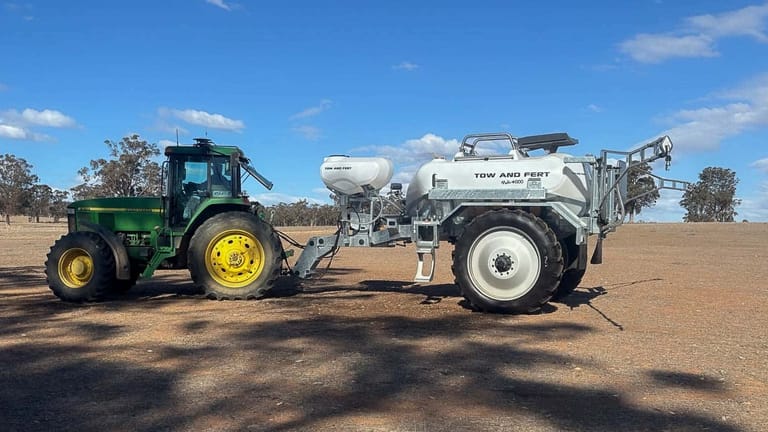

The Tow and Fert MultiCrop 4000 dissolves solid fertilisers for foliar application and holds ultra-fine particles in suspension, so they go out evenly across the full 22-24 metre width.

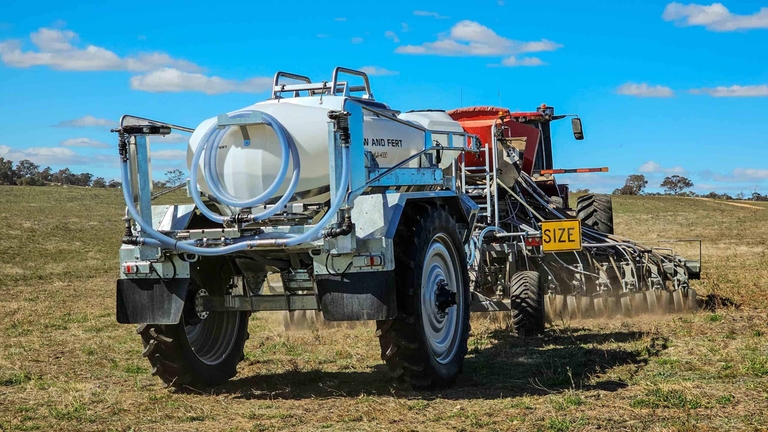

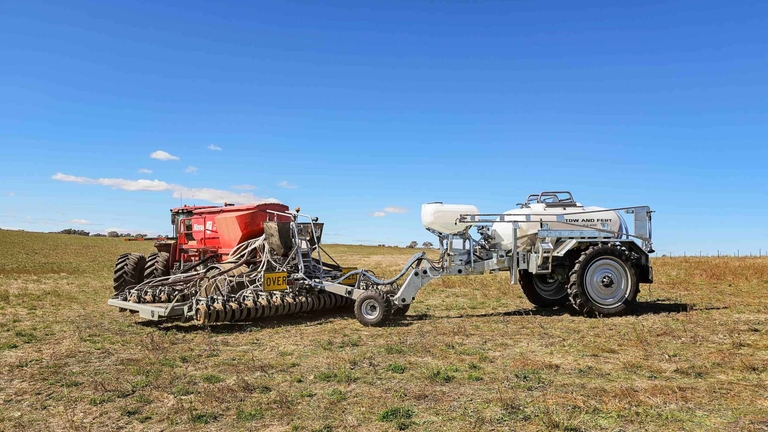

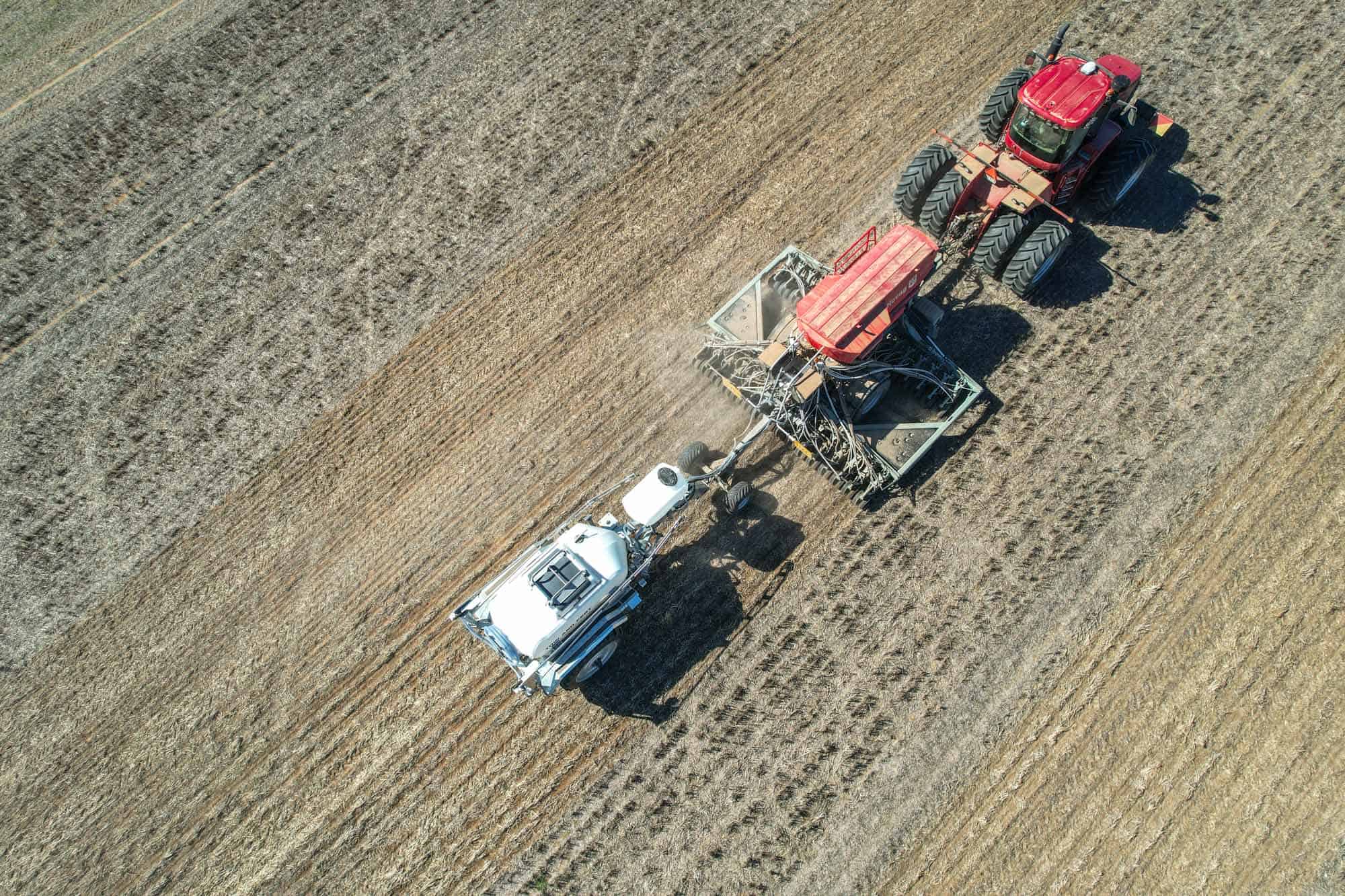

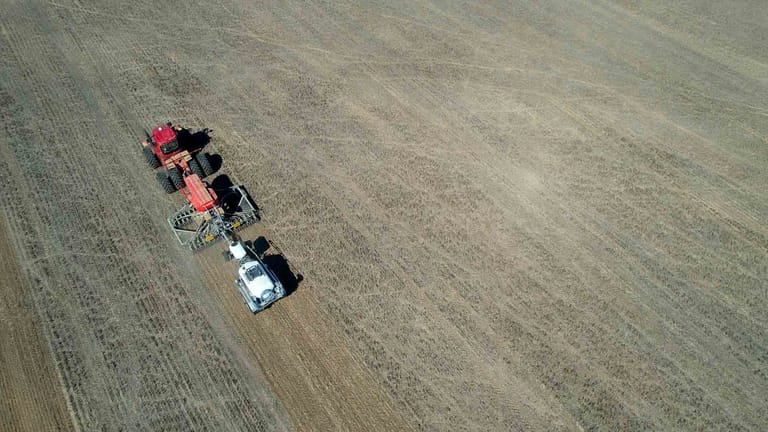

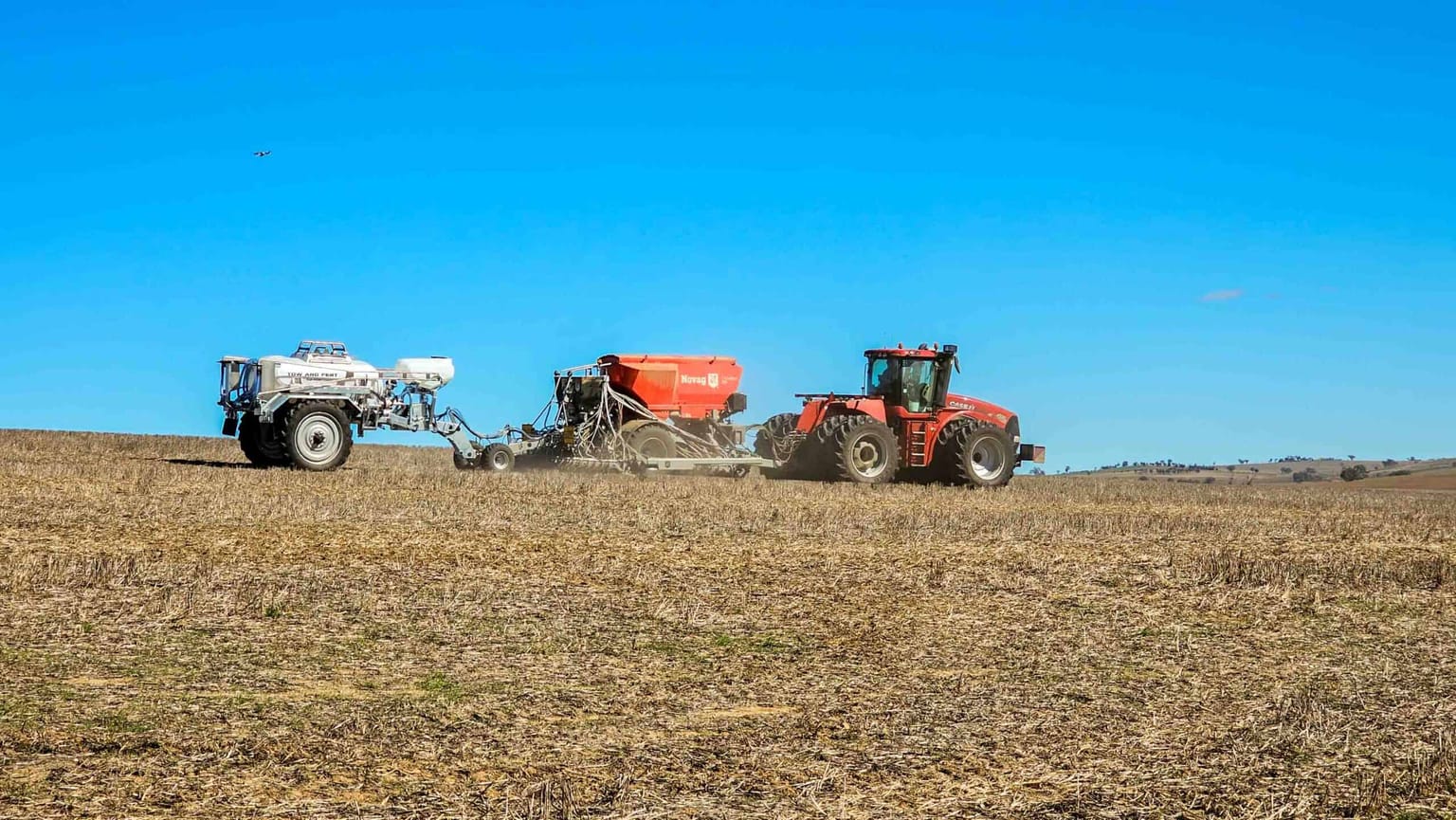

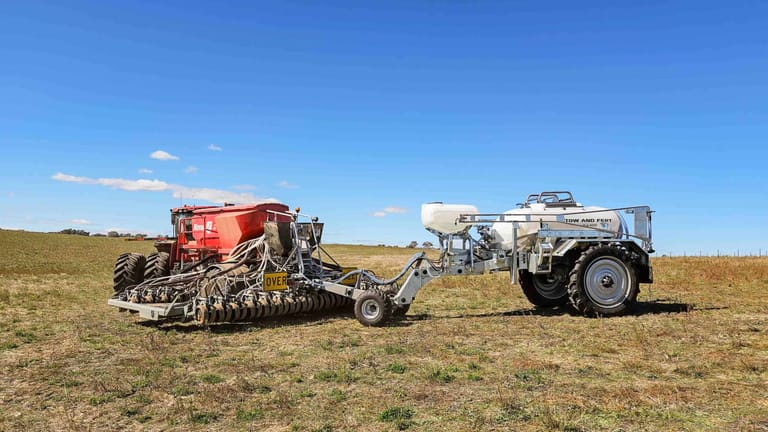

It also works as a nurse wagon, supplying conventional, biological or organic fertilisers along with ultra-fine particles to air seeders, rippers and seed drills.
Our boom circulation design keeps the purpose built stainless steel nozzles clear on the mixes that block conventional sprayers. Agitation runs off a 55 litre per minute hydraulic motor, and the Metalform 3 inch stainless trash pump moves 1200 litres per minute.
The 4000 litre tank covers up to 40 hectares a load at 50 to 500 litres per hectare, behind a tractor of 160hp or greater.

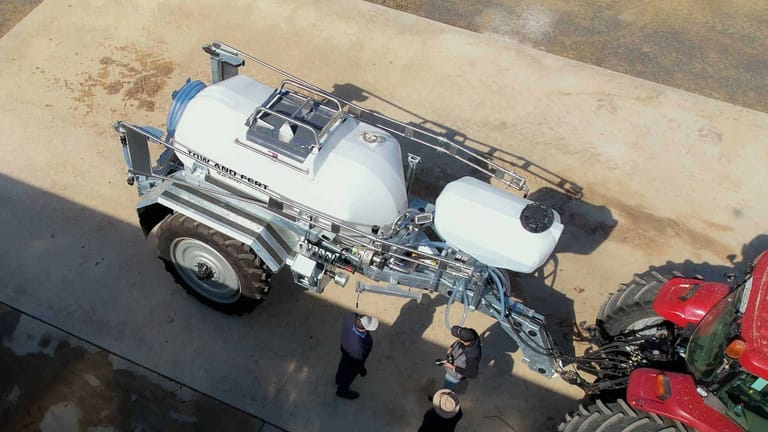

A 500 litre flush tank lets you flush the system straight after use, which cuts build up and extends the life of the machine.
BUILT TO OUTPERFORM
The most capable suspension sprayer, feature by feature
We built the Tow and Fert to do what others can't. Line them up against it and the gap speaks for itself.
| Feature | Tow and Fert | Other Sprayers |
|---|---|---|
| Even spread, under 15% COVEven application you can measure, test it on your own farm | Tow and FertYes | Other SprayersPartial |
| Dissolves 1 part urea to 2 parts water, fastHigh-concentration mixes without clogging or long load times | Tow and FertYes | Other SprayersNo |
| Suspends 2 parts lime flour to 1 part waterKeeps heavy fine particles in suspension, evenly, all the way to the nozzles | Tow and FertYes | Other SprayersNo |
| Boom recirculation on every nozzlePatented system, works even on single-nozzle machines - no blocking | Tow and FertYes | Other SprayersNo |
| Purpose-built Metalform 3 inch stainless pumpEngineered in-house after off-the-shelf pumps couldn't take the punishment | Tow and FertYes | Other SprayersNo |
| Runs at 22psi to protect biologicalsLow pressure keeps microbes and living inputs alive through application | Tow and FertYes | Other SprayersNo |
| Onboard weigh scalesKnow exactly what's in the tank, load accurately every time | Tow and FertYes | Other SprayersPartial |
| Companion Mix appMix rates, nozzle selection and ground speed worked out for you | Tow and FertYes | Other SprayersNo |
| 2,500+ strong farmer communityReal users sharing results, trials and advice, not just customers | Tow and FertYes | Other SprayersNo |
| Commercial-grade build, Over-engineered to outlastCommercial construction that keeps performing, day in day out | Tow and FertYes | Other SprayersNo |
| Travelling service & support - globallyOn-farm support and servicing, not a phone queue | Tow and FertYes | Other SprayersPartial |
| Pioneered and built in New ZealandDesigned and manufactured in Dannevirke, over 15 years in the paddock | Tow and FertYes | Other SprayersPartial |
Get in touch
Request information or book a demo
Talk to a specialist about Tow and Fert MultiCrop 4000 and how it can work for your operation.
